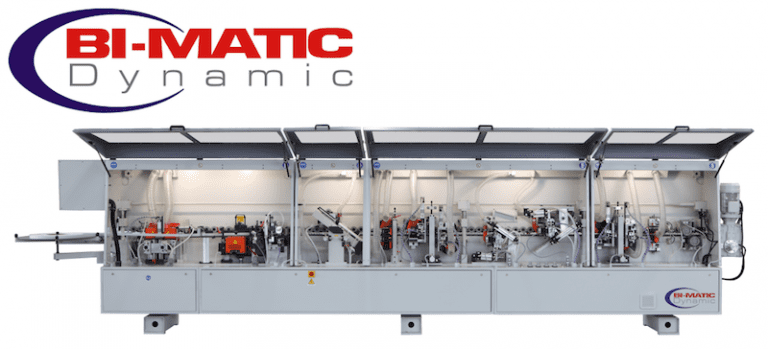

Bi-Matic Dynamic Edgebanders – Modular Edgebanders Equipped for High-Production Edgebanding
Bi-Matic Dynamic is a configurable, industrial line of edgebanders designed to match your production goals with tailored working groups and modern controls. Built in Italy, the series focuses on mechanical reliability, flexibility and an operator-friendly interface.
“Higher feed speeds, more options — configure Dynamic to suit your shop.”
Dynamic Edgebanders for Sale in Australia
The Dynamic range combines a graphic HMI with program memory and controlled axes, giving repeatable setups and fast access to your working units. Industry 4.0 readiness and extensive customisation options make it ideal for busy cabinet, joinery and furniture workshops.
Key Features
- 15″/21″ graphic display with program storage, axis control, error messaging and rapid access to units (EW115/ER222)
- Industry 4.0-ready control platform
- Unique gluing system for consistent, accurate glue dosing
- 1″ industrial chain track with 50×80 mm cleats for maximum panel hold; track working height 900 mm
- 3–12 electronic inverters to manage motors from track and glue pot through to operating units, with PLC control
- Extendable side transfer on recirculating-ball bushings for stable handling of larger workpieces
- Pre-milling with twin HF motors (12,000 rpm), optional self-centring DGT01 controlled axis
- Twin-motor end trimming (12,000 rpm) with pneumatic tilt (0–15°) available
- Options for narrow-panel guide (NPR) and telescopic large-panel support (TDS)
- RIEPE systems available (anti-adhesive, anti-static/cooling, polishing)
Technical Highlights
| Feature | Details |
|---|
| Control | EW115/ER222 15″/21″ graphic HMI with program memory & controlled axes |
| Industry 4.0 | Ready |
| Gluing | Unique dosing system; quick-release 3 L Teflon-coated glue pot, ~5–6 min heat-up |
| Conveyance | 1″ chain track, 50×80 mm cleats; 900 mm working height |
| Drives | 3–12 electronic inverters; PLC control |
| Unit speeds | Pre-milling / trimming / rounding at 12,000 rpm (typical) |
| Handling | Extendable side transfer on recirculating-ball bushings |
Sample Models & Configurations
Examples from the official brochure include: 7.12-a, 7.12-r, 8.12-r.a, 9.12-r.a, 10.12-r.a (packages and lengths vary by edition).
Why Choose Tuckwell Machinery?
Applications
- Cabinet and furniture manufacturing
- Kitchen and bathroom joinery
- Shopfitting and office fitouts
- Custom woodworking projects
Related Machinery
For pricing, questions, or to request a demo, call Tuckwell Machinery on 07 3805 5444 or fill in the enquiry form below.
