One-Person Operation
Returns processed panels back to the operator so one person can manage many edgebanding workflows more efficiently.
Reduce manual handling and keep panels moving with Compakto 24/12 F and 24/15 F return systems designed to bring processed workpieces back to the edgebander operator.
Tuckwell Machinery supplies Compakto panel return systems for Australian cabinet makers, furniture manufacturers and panel-processing workshops looking to improve edgebander productivity without adding another operator to the process.
Once a panel exits the edgebander, the Compakto returns it to the operator while the next board is prepared. This can reduce walking, lifting and repeated handling, create a more continuous workflow and help turn many edgebanding setups into a practical one-person operation.
For repetitive edgebanding work, the return journey can consume just as much operator time as feeding the machine. A panel return keeps material circulating around the operator rather than requiring constant walking and manual retrieval.
Returns processed panels back to the operator so one person can manage many edgebanding workflows more efficiently.
Reduces repeated walking, carrying and repositioning of panels throughout the production cycle.
Allows the operator to prepare the next board while the previous workpiece is returned automatically.
Modular sections make the system easier to install, move or adapt as production requirements change.

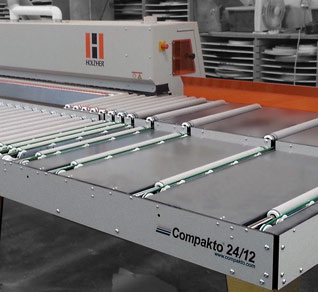

The Compakto returns finished workpieces from the outfeed side of the edgebander back towards the operator. Panels can accumulate at the end of the roller conveyor and the system switches off once the batch has finished.
When the next board exits the edgebander, the Compakto starts again automatically, helping maintain a steady workflow without requiring a second person to collect each panel.
Compakto return conveyors are built from modular, self-contained sections that plug together. This makes the system straightforward to install and gives workshops flexibility if an edgebander is relocated or the production layout changes.
The return system can be used with a wide range of edgebanding machines and profile sanders. Tuckwell also supplies OTT edgebanders and OAV edgebanders.
Both models are designed around the same one-person workflow concept. The main difference is the maximum returnable panel width and the maximum edgebander track speed supported.
A compact panel-return configuration for many standard cabinetmaking and furniture-production applications.
A wider return configuration for workshops processing larger workpieces or requiring increased track-speed compatibility.
| Specification | Compakto 24/12 F | Compakto 24/15 F |
|---|---|---|
| Maximum returnable panel length | 2400 mm | 2400 mm |
| Minimum returnable panel length | 100 mm | 100 mm |
| Maximum returnable panel width | 1200 mm | 1500 mm |
| Minimum returnable panel width | 60 mm | 60 mm |
| Maximum edgebander track speed | 20 m/min | 25 m/min |
| Mini board turner | Yes – 45° rotation | Yes – 45° rotation |
| Reduced roller pitch | 65 mm | 65 mm |
| Support rail | Fixed roller rail | Fixed roller rail |
See how the 24/12 F and 24/15 F return systems move panels back towards the operator and support more efficient single-operator edgebanding.
Give the Tuckwell team a few details about your machine, panel sizes and current workflow and we can help determine which return configuration is the better fit.
Tuckwell supports woodworking businesses beyond the initial purchase, helping with machinery selection, installation and long-term service requirements.
Help matching the Compakto model and return layout to your existing edgebander, panel sizes and workflow.
Support with delivery, installation and setup so the return system works correctly within your production area.
Tuckwell supplies woodworking machinery and production equipment to manufacturers throughout Australia.
Technician-backed support, servicing and assistance for the woodworking machinery and equipment supplied by Tuckwell.
Tell us which edgebander you are running, the panels you process and your current workflow. We can help you determine whether a Compakto 24/12 F or 24/15 F is the better fit.
Common questions about Compakto 24/12 F and 24/15 F return conveyors for edgebanding machines.
A Compakto panel return is a conveyor system that returns processed panels from the outfeed side of an edgebander back towards the operator. This can reduce manual handling and allow many edgebanding workflows to operate more efficiently with one person.
Yes. The modular system can be used with a wide range of edgebanding machines and profile sanders. Compatibility depends on the machine layout, panel dimensions, feed speed and available floor space.
The 24/12 F handles returnable panel widths up to 1200 mm and edgebander track speeds up to 20 m/min. The 24/15 F increases the maximum panel width to 1500 mm and supports track speeds up to 25 m/min.
Both models are specified for returnable panel lengths from 100 mm to 2400 mm.
Both models use a reduced 65 mm roller pitch to help prevent smaller workpieces from falling between rollers. The minimum stated returnable panel width is 60 mm and the minimum length is 100 mm.
Yes. Both the 24/12 F and 24/15 F include a mini board turner that rotates the returning panel by 45 degrees.
Yes. Tuckwell Machinery supplies woodworking machinery and production equipment Australia-wide and can assist with Compakto model selection, installation and ongoing support.
Useful information includes your edgebander make and model, feed speed, largest and smallest panel dimensions, available floor space and the way operators currently handle panels after they exit the machine. You can contact Tuckwell Machinery to discuss your setup.
