Elumatec aluminium machinery

Elumatec Copy Routers

Explore Elumatec copy routers for precise machining of aluminium and PVC profiles, with models for slots, recesses, lock cylinders, handle holes, rosettes and other repeatable hardware preparation.

Explore the Copy Router Range → Discuss Your Requirements

Copy Routers for Aluminium & PVC Profile Machining

Tuckwell Machinery supplies professional copy routers from Elumatec for aluminium and PVC fabrication. The range includes the compact AS 70/44, the larger-capacity AS 170/00, the two-spindle KF 78 and the three-spindle KF 178.

These Elumatec machines use stops or copy templates to reproduce routing patterns at a 1:1 ratio, helping fabricators produce repeatable slots, apertures and hardware preparations in window and door profiles. As the sole agent for Elumatec in Queensland, Tuckwell Machinery provides machine advice, installation, operator training, servicing support and genuine Elumatec parts.

Elumatec Copy Routers • Aluminium & PVC Profiles • 1:1 Copy Routing • Queensland Elumatec Support
Profile routing applications

What Are Copy Routers Used For?

A copy router transfers a defined cutting pattern into a profile using fixed stops or a copy template. In aluminium and PVC fabrication, this makes it possible to produce repeatable openings and recesses for locks, handles, latches and other hardware.

Elumatec copy routers are designed around professional profile machining, with model options for compact single-spindle routing, larger profile capacities and multi-spindle machining across more than one plane.

  • Lock cylinder and handle-hole routing
  • Slots, apertures and recesses
  • Round rosettes and door-hardware preparation
  • Rectangular routing patterns using stops
  • 1:1 copy routing from templates
  • Aluminium and PVC window and door profiles
Elumatec AS 70/44 copy router for aluminium and PVC profile machining
Elumatec profile machining

Elumatec Copy Router Range

Compare four Elumatec copy routers for different profile sizes and routing requirements, from compact single-spindle work through to two- and three-spindle door-production applications.

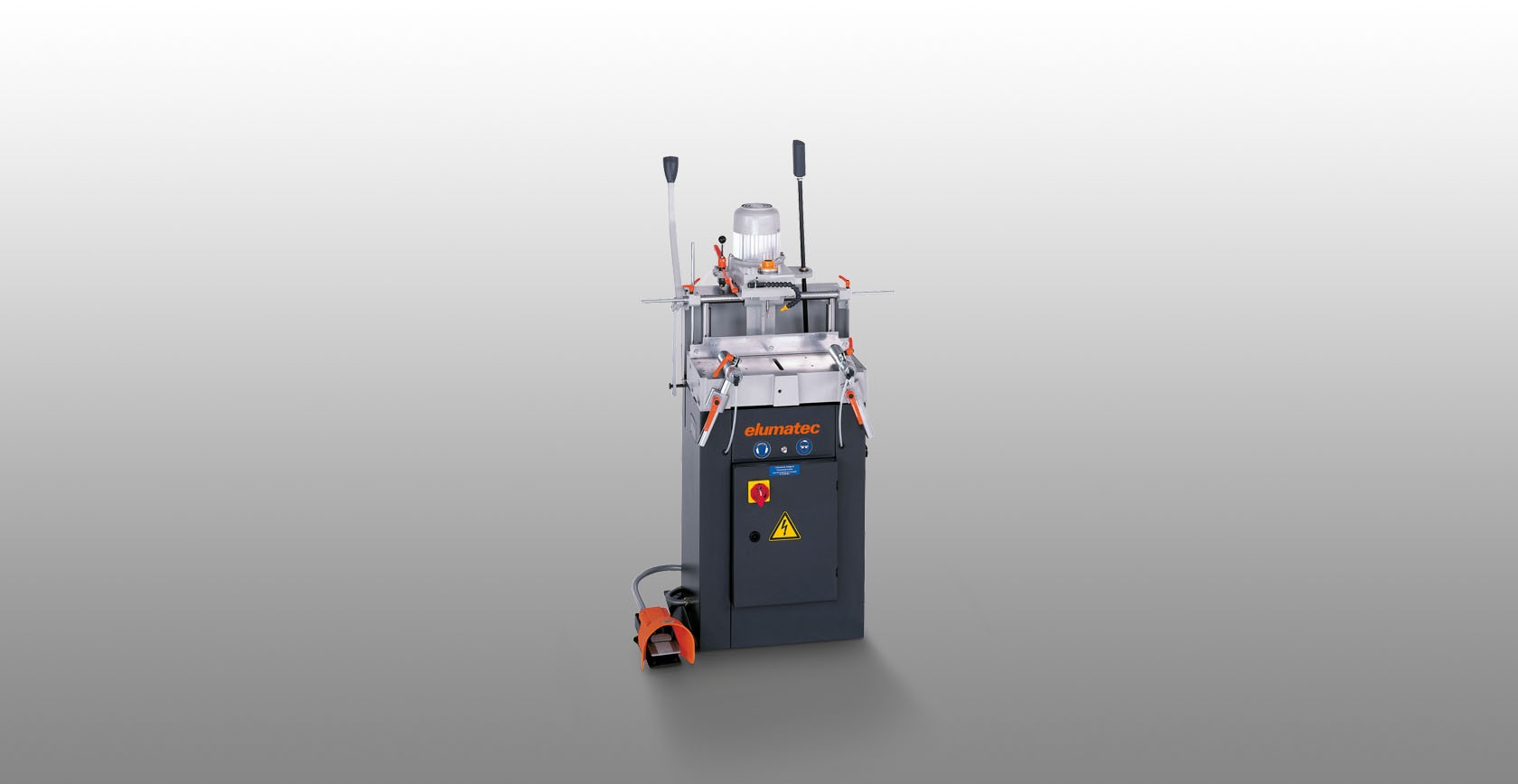

Elumatec AS 70/44 copy router for aluminium and PVC profiles
Compact Single-Spindle

Elumatec AS 70/44

The AS 70/44 is a versatile single-spindle copy router for aluminium and PVC profile machining, supporting 1:1 routing from templates and rectangular patterns using stops.

  • 230 × 90 mm horizontal cutting range using stops or copy template
  • Manual tracer point with three levels for different cutter diameters
  • Pneumatic material clamping
  • Pulsed coolant system
  • 12,000 rpm spindle speed
Download AS 70/44 PDF

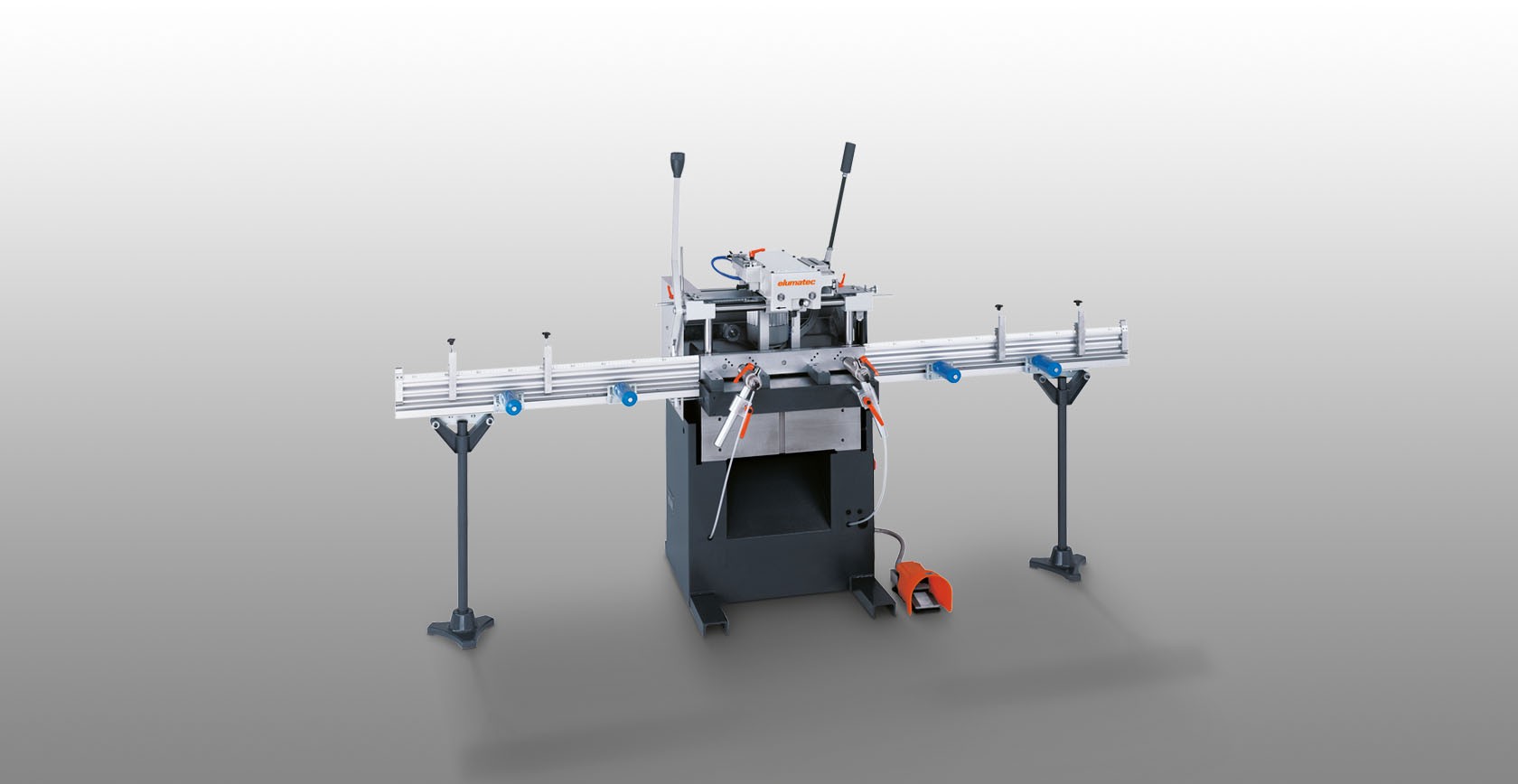

Elumatec AS 170/00 copy router with adjustable table height
Larger Cutting Range

Elumatec AS 170/00

The AS 170/00 combines a larger cutting range with a compact machine design. Its adjustable table height accommodates profiles up to 400 mm.

  • 300 × 120 mm cutting range using stops
  • 285 × 110 mm copy-template cutting range
  • Adjustable table height for profiles up to 400 mm
  • Pneumatic tracer point with two levels
  • Spindle Lock for easier tool changing
Download AS 170 PDF

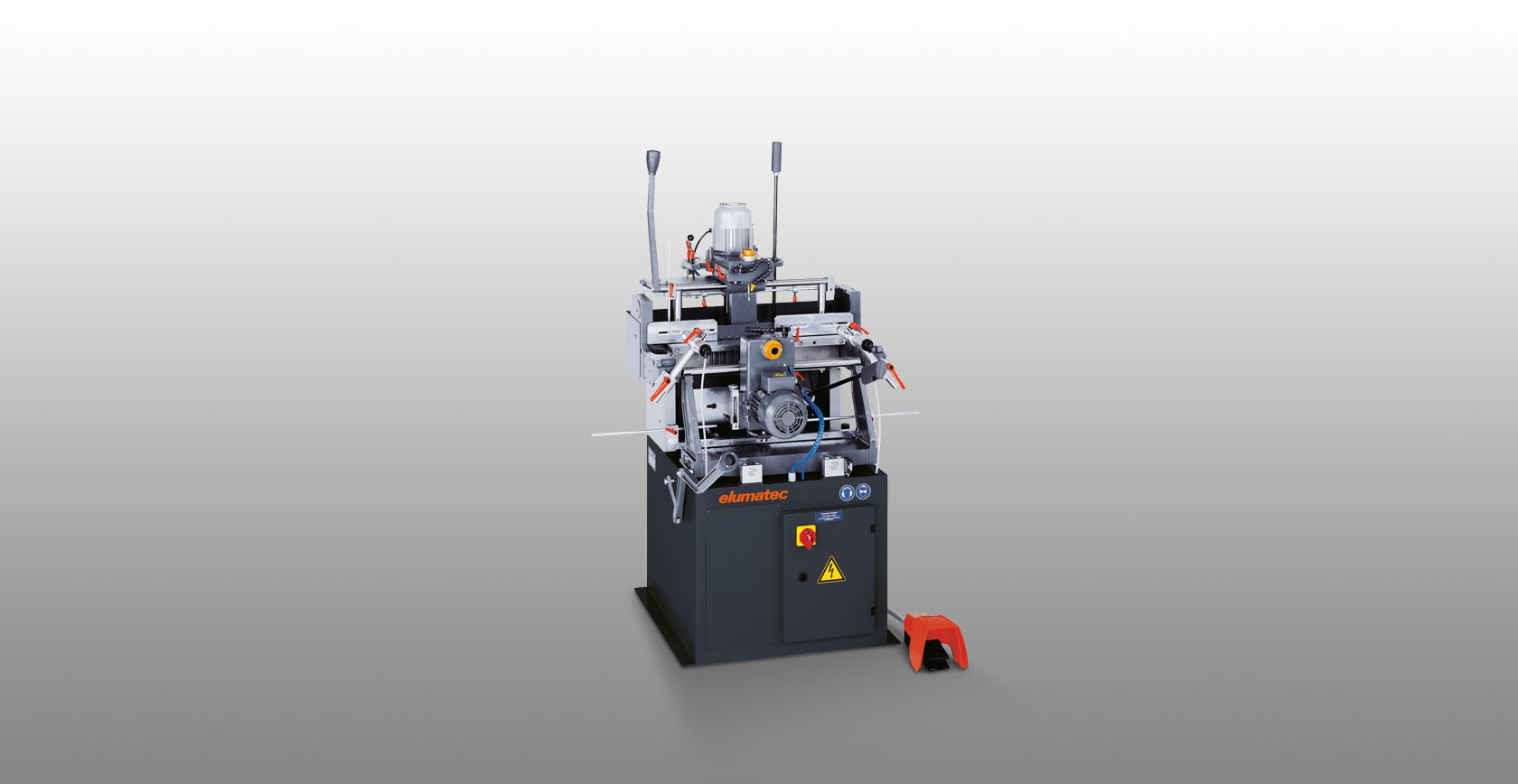

Elumatec KF 78 two-spindle copy router for lock cylinders and handle holes
Two-Spindle Routing

Elumatec KF 78

The KF 78 is designed for routing lock cylinders and handle holes up to a profile thickness of 70 mm, using two independent copy routing units across vertical and horizontal planes.

  • Two independent copy routing units
  • Vertical and horizontal routing in two planes
  • For profiles up to 70 mm thick
  • Plastic-coated table to protect profile surfaces
  • Pneumatic horizontal clamping and pulsed coolant
Download KF 78 PDF

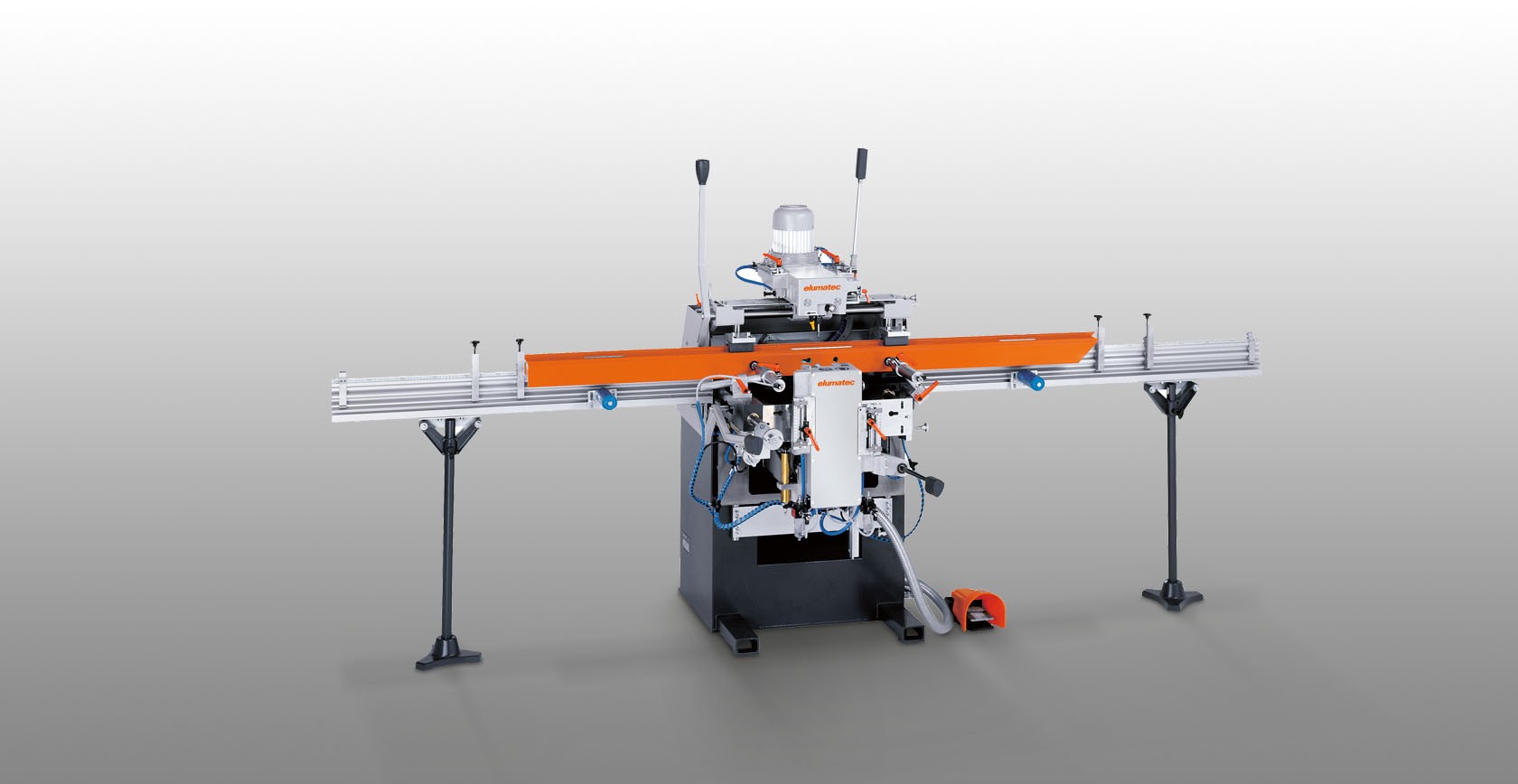

Elumatec KF 178 three-spindle copy router for aluminium door manufacturing
Three-Spindle Routing

Elumatec KF 178

The KF 178 is designed for economical door manufacturing, including routing lock cylinders and round rosettes in profile systems and multi-chamber profiles with larger dimensional depths.

  • Three independently operating copy routing units
  • Separate control of horizontal and vertical router heads
  • Lock-cylinder and round-rosette machining
  • Flexible back-stop system with support rollers
  • Spindle Lock for easier tool changing
Download KF 178 PDF

Compare Elumatec Copy Routers

Use the technical overview below to compare the AS 70/44, AS 170/00, KF 78 and KF 178. Confirm final machine configuration and current specifications with Tuckwell Machinery before ordering.

Specification AS 70/44 AS 170/00 KF 78/23 KF 178/10 – KF 178/13
Machine TypeSingle-spindle copy routerSingle-spindle copy routerTwo-spindle copy routerThree-spindle copy router
Routing MethodCopy templates or stopsSide stops or copy templatesStops or copy templatesStops or copy templates
Cutting Range Using Stops230 × 90 mm300 × 120 mmHorizontal 300 × 100 mm; vertical 290 × 100 mmTop routing unit 340 × 100 mm; bottom routing unit 240 × 85 mm
Cutting Range Using Copy Template230 × 90 mm285 × 110 mmHorizontal 270 × 70 mm; vertical 230 × 70 mmTop routing unit 340 × 100 mm; bottom routing unit 240 × 85 mm
Travel110 mm105 mmHorizontal 80 mm; vertical 120 mmTop 110 mm; bottom front 95 mm; bottom back 45 mm
Spindle Speed12,000 rpm12,000 rpm12,000 rpm12,000 rpm
Clamping Range180 × 130 mm150 × 130 mm, adjustable up to 400 mm150 × 150 mm115 × 100 mm
Power Supply230/400 V, 3~, 50 Hz230/400 V, 3~, 50 Hz230/400 V, 3~, 50 Hz230/400 V, 3~, 50 Hz
Power Output0.74 kW0.74 kW0.74 kW0.74 kW per motor
Compressed Air7 bar7 bar7 bar7 bar
Air Consumption Per Cycle12 L without spraying; 24 L with spraying12 L without spraying; 24 L with spraying12 L without spraying; 24 L with spraying12 L without spraying; 24 L with spraying
Dimensions720 × 650 × 1,440 mm780 × 790 × 1,545 mm940 × 1,150 × 1,600 mm980 × 1,250 × 1,610 mm
Weight120 kg210 kg260 kg360 kg
AS 70/44 Technical Sheet AS 170/00 Technical Sheet KF 78 Technical Sheet KF 178 Technical Sheet
Machine demonstrations

See Elumatec Copy Routers in Action

Watch the AS 170/00 and AS 70/44 operating in aluminium profile machining applications.

Elumatec AS 170 copy router demonstration.

Elumatec AS 70/44 copy router demonstration.

Which Copy Router Is Right for Your Workshop?

The right Elumatec model depends on the profiles you machine, the routing operations required and the way the machine fits into your production workflow.

What aluminium or PVC profile sizes do you machine?
Which slots, holes, locks or rosettes need routing?
Do you need routing in one or multiple planes?
What production volume and workshop space are available?
Get a Personal Recommendation
Elumatec KF 78 copy router supplied by Tuckwell Machinery

Why Buy Elumatec Copy Routers from Tuckwell Machinery?

Tuckwell Machinery is the sole agent for Elumatec in Queensland and supports aluminium fabrication businesses with machine selection, supply, setup, operator training, servicing assistance and genuine parts.

Elumatec Expertise

Help comparing AS and KF copy router models around your profile-machining requirements.

Production Planning

Advice around profile sizes, routing operations, spindle configuration and workshop workflow.

Installation & Training

Machine setup and operator training for Elumatec machinery supplied by Tuckwell.

Parts & Service

Technician-backed support and access to genuine Elumatec parts for supported machines.

Talk to Tuckwell About Copy Routers

Tell us which profiles you machine and the routing operations you need. We can help you compare the Elumatec AS 70/44, AS 170/00, KF 78 and KF 178.

Contact Tuckwell Machinery →
Frequently asked questions

Elumatec Copy Router FAQs

Answers to common questions about copy routers, aluminium profile machining and the Elumatec AS and KF ranges.

What is a copy router used for?

A copy router is used to create repeatable slots, recesses, apertures, lock-cylinder openings, handle holes and other hardware preparations in aluminium or PVC profiles using stops or copy templates.

What are Elumatec copy routers designed to machine?

Elumatec copy routers are designed for professional aluminium and PVC profile machining, including window and door profiles that require locks, handles, rosettes, slots and other routed hardware features.

Which Elumatec copy router is suitable for larger profiles?

The AS 170/00 provides a larger cutting range and an adjustable table height that accommodates profiles up to 400 mm.

What is the Elumatec KF 78 used for?

The KF 78 is designed for routing lock cylinders and handle holes up to a profile thickness of 70 mm. Its two independent routing units allow machining in vertical and horizontal planes.

What is the Elumatec KF 178 used for?

The KF 178 is designed for economical door manufacturing, including lock-cylinder and round-rosette routing in profile systems and multi-chamber profiles with larger dimensional depths.

What spindle speed do these Elumatec copy routers use?

The AS 70/44, AS 170/00, KF 78 and KF 178 specifications shown on this page list a spindle speed of 12,000 rpm.

Does Tuckwell Machinery supply and support Elumatec copy routers in Queensland?

Yes. Tuckwell Machinery is the sole agent for Elumatec in Queensland and provides machine advice, supply, installation, operator training, servicing assistance and genuine Elumatec parts support.
