Explore Elumatec corner crimpers for accurate aluminium window, door, frame and curtain wall assembly, including compact and heavy-duty EP models for different profile sizes and pressing requirements.

Explore the Corner Crimper Range → Discuss Your Requirements

Corner Crimpers for Aluminium Fabrication

Tuckwell Machinery supplies professional corner crimpers from Elumatec for aluminium window, door, frame and curtain wall fabrication. The range includes the compact EP 120 and the larger EP 124 and EP 124/20 for bigger profiles and higher pressing requirements.

These machines are designed to press aluminium profile corners with controlled force and repeatability, helping fabrication workshops achieve consistent frame assembly. As the sole agent for Elumatec in Queensland, Tuckwell Machinery provides machine advice, installation, operator training, servicing support and genuine Elumatec parts.

Elumatec Corner Crimpers • Window, Door & Frame Assembly • Up to 70 kN Pressing Force • Queensland Elumatec Support
Aluminium profile assembly

What Are Corner Crimpers Used For?

Corner crimpers are used to join aluminium profile corners by pressing the prepared profile sections around the corner cleat or connection point. They are commonly used in aluminium window and door fabrication, commercial framing and curtain wall production.

The Elumatec EP range gives workshops options for standard profile work through to larger structural sections, with pressing force and working height increasing across the range.

  • Aluminium window frame assembly
  • Door and commercial frame fabrication
  • Curtain wall element production
  • Architectural aluminium profile assembly
  • Repeatable aluminium corner pressing
  • Compact and larger-profile machine options
Elumatec EP 120 corner crimper for aluminium window and door fabrication
Elumatec EP range

Elumatec Corner Crimper Models

Compare the compact EP 120 with the larger EP 124 and EP 124/20 models according to your profile dimensions, pressing height and production requirements.

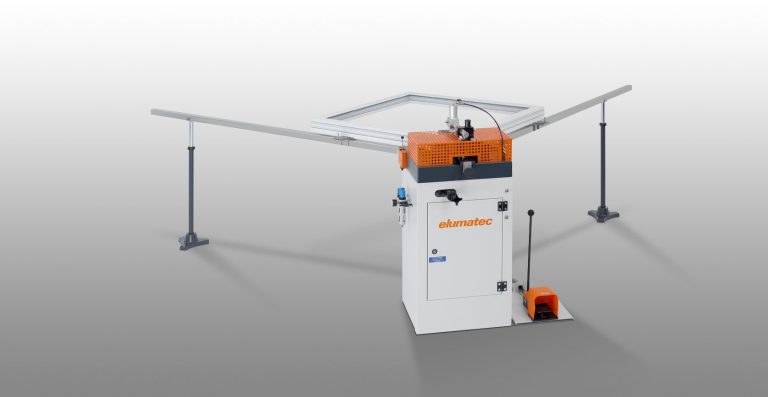

Elumatec EP 120 corner crimper for aluminium profiles
Compact Corner Crimper

Elumatec EP 120

The EP 120 is designed for pressing aluminium profiles up to 68 mm high. It uses a large-volume, maintenance-free bellows cylinder to provide strong pressing force in a compact workshop machine.

  • Pressing height up to 68 mm
  • 40 kN / 4 t pressing force
  • Pneumatic drive
  • Pneumatically positioned counter bearing with mechanical locking
  • Support arms and pressing blades included as standard
Download EP 120 PDF
Elumatec corner crimper detail for large aluminium profile assembly
Larger Profile Corner Crimper

Elumatec EP 124 / EP 124/20

The EP 124 range is designed for larger aluminium profile dimensions and higher quality requirements, including curtain wall applications. The EP 124/20 increases pressing height to 200 mm.

  • Pressing height 140 mm / 200 mm
  • 70 kN / 7 t pressing force
  • Pneumatic drive
  • Retractable hydro-pneumatically controlled counter bearing
  • Separately adjustable pressing depth for each tool carriage
  • Adjustable pressing blade for profile chamber offset
Download EP 124 PDF

Compare Elumatec Corner Crimpers

The table below compares the main technical differences between the EP 120 and EP 124 / EP 124/20. Confirm final configuration and current specifications with Tuckwell Machinery before ordering.

Specification EP 120 EP 124 / EP 124/20
Pressing Height68 mm140 / 200 mm
Pressing Force40 kN / 4 t70 kN / 7 t
DrivePneumaticPneumatic
Power SupplyNot listed on technical sheet230 V, 1~, 50/60 Hz
Compressed Air Supply7 bar7 bar
Air Consumption Per Cycle30 L35 L
Dimensions650 × 820 × 1,270 mm1,100 × 950 × 1,230 mm
Weight205 kg545 / 534 kg
ApplicationsProfiles up to 68 mm highLarge profiles and curtain wall elements
EP 120 Technical Sheet EP 124 Technical Sheet
Machine details

Elumatec Corner Crimper Details

These images show the EP 120 and the aluminium profile pressing area used for controlled corner assembly.

Elumatec EP 120 aluminium corner crimper detail

Elumatec EP 120 machine detail.

Elumatec EP 120 corner crimper for aluminium fabrication

Elumatec EP 120 corner crimper.

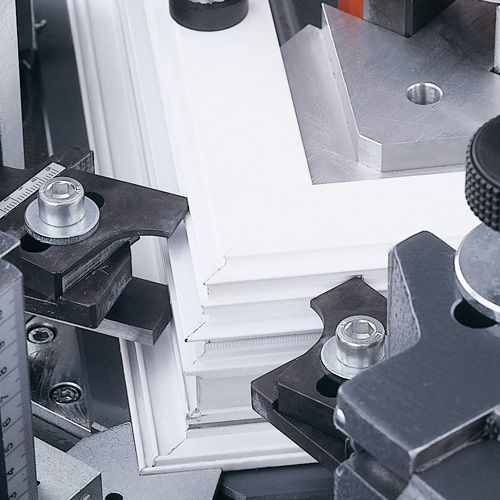

Elumatec aluminium window corner crimper pressing detail

Aluminium corner pressing detail.

Elumatec aluminium corner crimper profile assembly detail

Profile assembly detail.

Why Choose Elumatec Corner Crimpers?

Elumatec corner crimpers are designed for professional aluminium fabrication, with practical machine adjustment, controlled pressing force and model options for both standard and larger profile work.

Profile-Specific Options

Choose between compact and larger-format machines according to your aluminium profile dimensions.

Controlled Pressing Force

40 kN and 70 kN machine options support different profile sizes and assembly requirements.

Workshop-Friendly Setup

Practical adjustment, included pressing blades and support equipment help streamline production setup.

Queensland Support

Tuckwell provides Elumatec machine advice, setup, service assistance and genuine parts support.

Which Corner Crimper Is Right for Your Workshop?

The right Elumatec model depends on the profiles you assemble, your maximum pressing height and the type of fabrication work you undertake.

What aluminium profile heights do you assemble?
Are you producing windows, doors, frames or curtain wall elements?
Do you need 68 mm, 140 mm or 200 mm pressing height?
What production volume and workshop space are available?
Get a Personal Recommendation
Elumatec EP 120 aluminium corner crimper supplied by Tuckwell Machinery

Why Buy Corner Crimpers from Tuckwell Machinery?

Tuckwell Machinery supplies and supports Elumatec corner crimpers for Queensland aluminium fabricators. Elumatec is recognised worldwide for its aluminium profile processing machinery and is a global market leader in the manufacture of machines for processing aluminium, PVC and steel profiles. That gives Australian fabricators access to proven international machinery backed locally by Tuckwell Machinery for machine selection, supply, setup, operator training, servicing assistance and genuine parts.

Elumatec Expertise

Help comparing EP corner crimper models around your aluminium profile and production requirements.

Production Planning

Advice around profile height, frame type, pressing force and workshop workflow.

Installation & Training

Machine setup and operator training for Elumatec machinery supplied by Tuckwell.

Parts & Service

Technician-backed assistance and access to genuine Elumatec parts for supported machines.

Talk to Tuckwell About Corner Crimpers

Tell us your profile sizes, pressing height and production requirements. We can help you compare the Elumatec EP 120, EP 124 and EP 124/20.

Contact Tuckwell Machinery →
Frequently asked questions

Elumatec Corner Crimper FAQs

Answers to common questions about corner crimpers, aluminium profile assembly and the Elumatec EP range.

What are corner crimpers used for?

Corner crimpers are used to press and assemble aluminium profile corners for windows, doors, commercial frames and curtain wall elements.

What are Elumatec corner crimpers designed for?

Elumatec corner crimpers are designed for professional aluminium profile assembly, with EP models covering standard window and door profiles through to larger curtain wall sections.

What is the difference between the EP 120 and EP 124 corner crimpers?

The EP 120 is a compact machine for profiles up to 68 mm high with 40 kN pressing force. The EP 124 and EP 124/20 are designed for larger profiles, with 140 mm or 200 mm pressing height and 70 kN pressing force.

Is the Elumatec EP 124/20 suitable for curtain wall elements?

Yes. The EP 124 range is designed for larger profile dimensions and curtain wall applications, with the EP 124/20 providing a 200 mm pressing height.

Which Elumatec model is suitable for aluminium window fabrication?

The EP 120 is suited to aluminium window and door profile work up to 68 mm pressing height, while larger profiles may require the EP 124 or EP 124/20.

How much pressing force do Elumatec corner crimpers provide?

The EP 120 provides 40 kN / 4 t pressing force, while the EP 124 and EP 124/20 provide 70 kN / 7 t.

Does Tuckwell Machinery supply and support Elumatec corner crimpers in Queensland?

Yes. Tuckwell Machinery is the sole agent for Elumatec in Queensland and provides machine advice, supply, setup, operator training, servicing assistance and genuine Elumatec parts support.
