Circular Saw Blades
Removes resin, pitch and built-up debris from blade bodies, gullets and tooth faces, with capacity for circular blades up to 500 mm diameter.

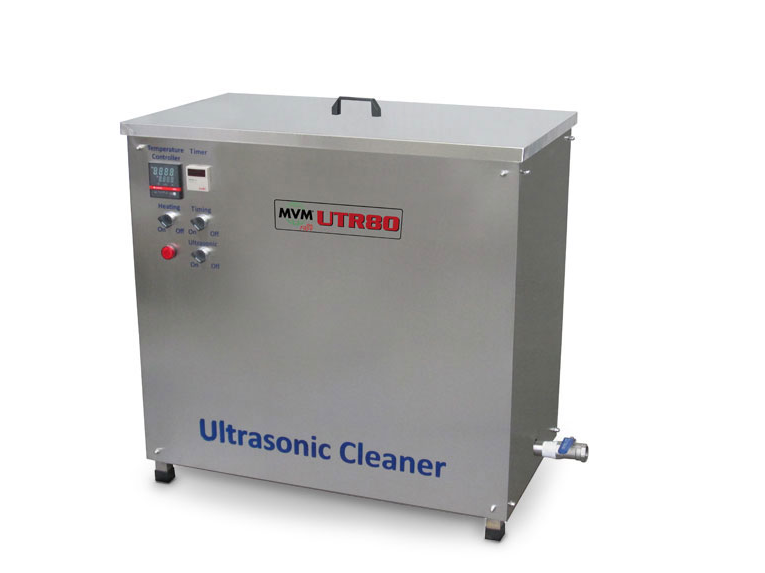

The MVM UTR80 industrial ultrasonic cleaner provides fast, non-abrasive cleaning for saw blades, industrial knives and precision tooling, with an 80-litre tank, 28 kHz ultrasonic frequency and capacity for circular blades up to 500 mm diameter.
The MVM UTR80 is an industrial ultrasonic cleaner designed for workshops, sharpening businesses and manufacturers that need to remove resin, pitch, grease, coolant and machining residue from cutting tools without abrasive scrubbing.
As an ultrasonic blade cleaner, the UTR80 uses ultrasonic cavitation, adjustable heat and a controlled cleaning cycle to reach blade gullets, tooth faces, recesses and other areas that are difficult to clean manually. Tuckwell Machinery supplies and supports the MVM UTR80 Australia-wide.
The UTR80 is suited to a wide range of metal cutting tools and industrial components that fit within its cleaning tank and work-holder dimensions.
Removes resin, pitch and built-up debris from blade bodies, gullets and tooth faces, with capacity for circular blades up to 500 mm diameter.
Non-abrasive cleaning for carbide-tipped tooling where maintaining blade geometry and surface condition is important.
Helps remove resin, coolant and workshop residue from bandsaw blade surfaces and tooth gullets before sharpening or storage.
Suitable for cleaning clipper and trimmer blades to remove lubricant, debris and product build-up before servicing or sharpening.
Cleans planer knives, chipper knives and similar tooling affected by sap, resin, wood fibre and machining residue.
Suitable for circular cutting knives used in industrial applications where adhesive, ink, grease or process residue builds up.
Provides non-abrasive cleaning for industrial blade surfaces before sharpening, inspection or return to service.
Can also be used for suitable metal components such as bearings, gears and precision parts that fit within the tank.
The UTR80 combines an 80-litre stainless steel cleaning tank with a digital ultrasonic generator, adjustable heating and programmable time control. Its 28 kHz operating frequency is designed for robust industrial cleaning of blades and tooling affected by resin, pitch, grease and machining contamination.
Key specifications for the UTR80 industrial ultrasonic cleaner are shown below. Contact Tuckwell Machinery to confirm current configuration, accessories and availability.
| Specification | MVM UTR80 |
|---|---|
| Tank useful capacity | 80 litres |
| Maximum blade diameter | 500 mm |
| Internal tank dimensions | 550 × 300 × 550 mm |

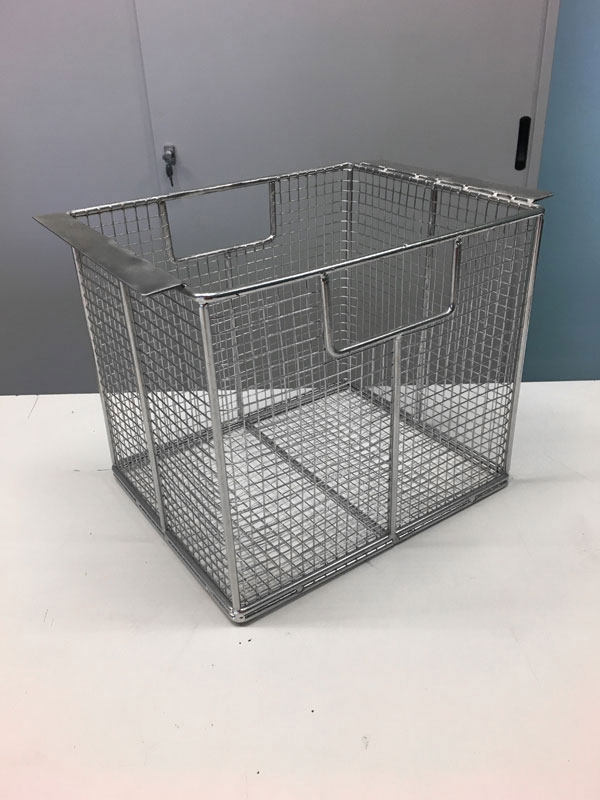

| Basket / work holder size | 500 × 250 × 490 mm |
| External dimensions | 850 × 500 × 850 mm |
| Machine weight | Approx. 110 kg |
| Ultrasonic frequency | 28 kHz |
| Ultrasonic power | 2.8 kW |
| Thermal heating power | 3 kW |
| Temperature range | 0°C–80°C |
| Programmable timer | 0–999 minutes |
| Generator type | Digital ultrasonic generator |

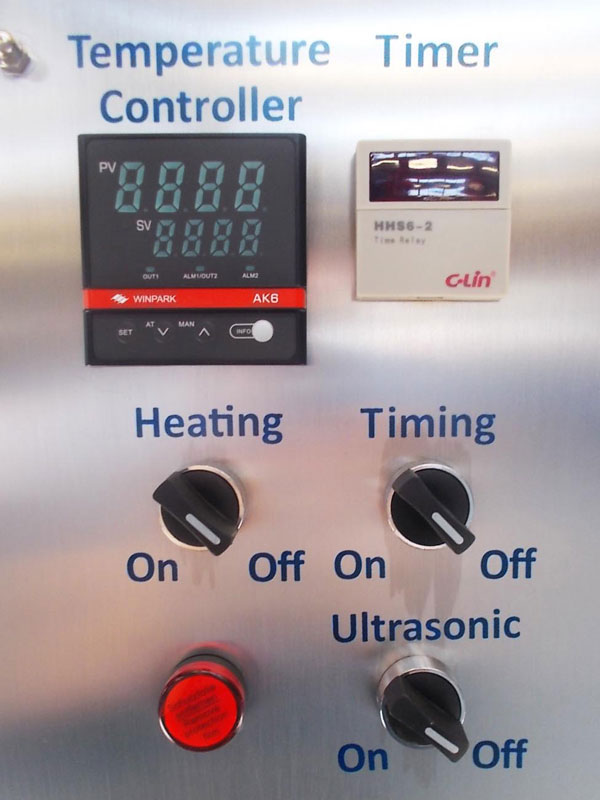

| Control panel | Digital display for time, temperature and power |
Blades or tooling are submerged in the cleaning tank while the ultrasonic generator creates high-frequency sound waves through the liquid. These waves produce microscopic cavitation bubbles that collapse against exposed surfaces and dislodge contamination without abrasive contact.
For the UTR80, adjustable heat can be used to support the cleaning process, while the programmable timer allows the cycle to be matched to the level of contamination and the tooling being cleaned.
For workshops that clean blades and tooling regularly, ultrasonic cleaning can reduce manual handling while providing more consistent access to difficult surfaces and recesses.
Cavitation acts throughout the cleaning liquid, including around gullets, recesses and other areas that are difficult to scrub manually.
The process removes contamination without wire brushing or abrasive pads contacting the blade or tool surface.
Automated cleaning cycles reduce the amount of hands-on scrubbing required for regularly serviced blades and tooling.
Digital time and temperature controls allow cleaning cycles to be repeated consistently across routine workshop jobs.
See the UTR80 operating as an industrial ultrasonic cleaner for blade and tooling applications.
MVM UTR80 ultrasonic blade cleaning demonstration.
Download the manufacturer brochure for additional specifications, machine dimensions and product information.
Download UTR80 BrochureTell Tuckwell what you are cleaning and how often, and our team can help determine whether the UTR80 suits your blade, tooling and production requirements.
Tuckwell Machinery supports Australian workshops beyond the initial equipment purchase, helping businesses select and operate machinery suited to their blade-cleaning and tooling-maintenance requirements.
Advice based on the tooling you clean, component dimensions, contamination and cleaning frequency.
Support from a machinery team familiar with professional woodworking, blade maintenance and workshop equipment.
Help getting the machine into service correctly and understanding the relevant controls and operating process.
Technician-backed assistance and help sourcing parts for machinery supplied by Tuckwell.
Looking for an industrial ultrasonic cleaner or ultrasonic blade cleaner for your workshop? Talk to Tuckwell about the UTR80, your tooling and your cleaning requirements.
Answers to common questions about the MVM UTR80, ultrasonic blade cleaning and industrial tooling maintenance.
An industrial ultrasonic cleaner uses high-frequency sound waves in a liquid bath to create microscopic cavitation bubbles. When those bubbles collapse near a surface, they help dislodge resin, grease, pitch and other contamination from exposed areas and recesses. The MVM UTR80 operates at 28 kHz.
The blade or tooling is submerged in the cleaning tank while the ultrasonic generator creates cavitation throughout the liquid. The UTR80 combines this with adjustable heating and programmable cycle times to clean blade bodies, gullets and other exposed surfaces without abrasive scrubbing.
The UTR80 can clean suitable metal tools and industrial components that fit within its 550 × 300 × 550 mm internal tank and work-holder dimensions. Applications include circular saw blades, TCT blades, bandsaw blades, clipper blades, joinery and chipper knives, circular knives, shear blades and precision metal parts.
The listed maximum circular blade diameter is 500 mm.
The MVM UTR80 operates at 28 kHz with 2.8 kW of ultrasonic power.
No. Ultrasonic cleaning uses cavitation in the cleaning liquid rather than abrasive pads or wire brushes contacting the part surface.
Yes. Clipper and trimmer blades are among the applications listed for the UTR80, provided the tooling is suitable for the cleaning process and correctly positioned in the tank.
The 80-litre tank can support batch cleaning where multiple parts can be correctly positioned and separated. Large blades may be better cleaned individually to maintain effective cleaning coverage.
