Italian-made straight knife grinder for plastic granulating and recycling blades, chipper knives and other compatible industrial knives. Available with 1,000 mm or 1,230 mm grinding lengths, backed by Tuckwell Machinery's technician-led support.
Tuckwell Machinery supplies the MVM ZX straight knife grinder to Australian workshops, sharpening services and manufacturing businesses. The ZX is available in two versions, with grinding lengths of 1,000 mm and 1,230 mm. Its rotating magnetic chuck makes it a practical option for sharpening compatible plastic granulator knives, recycling blades and wood chipper knives.

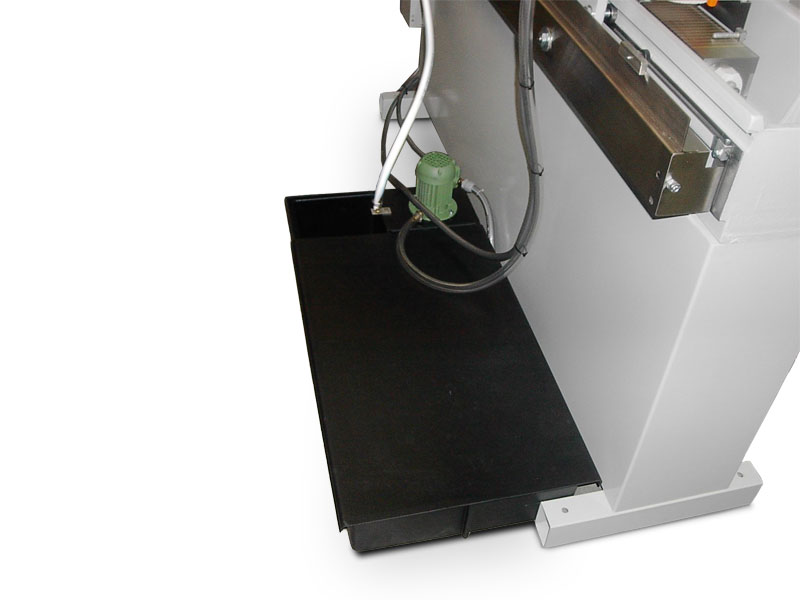

The machine also suits planer knives and selected specialist blades when fitted with the appropriate equipment. Automatic grinding-head downfeed, a tilting head, coolant system and chain-driven carriage support a controlled sharpening process.
Based in the Brisbane region, QLD, Tuckwell can help you compare blade dimensions, materials, workholding and required grinding capacity, with machinery supply and ongoing support available Australia-wide.
The ZX is designed for straight knife grinding across a range of workshop and production applications. The correct machine configuration depends on blade size, material, edge geometry and the required holding arrangement.

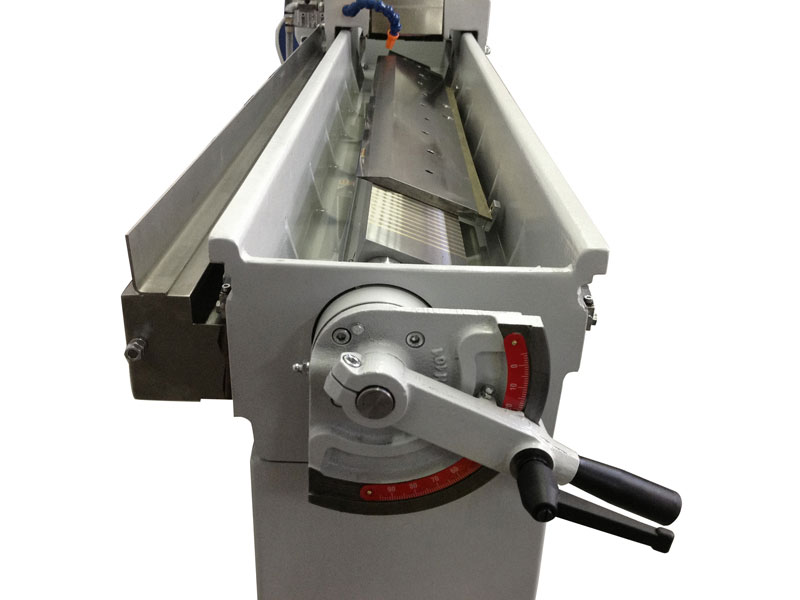

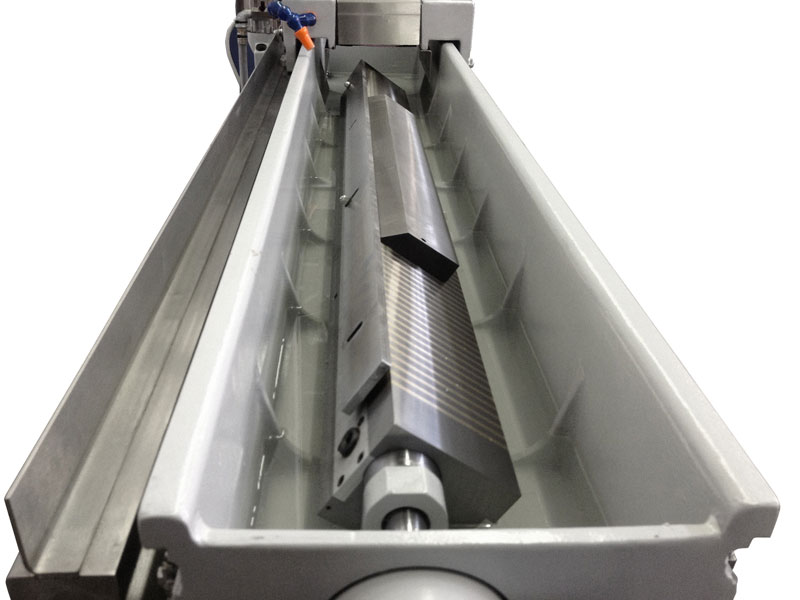

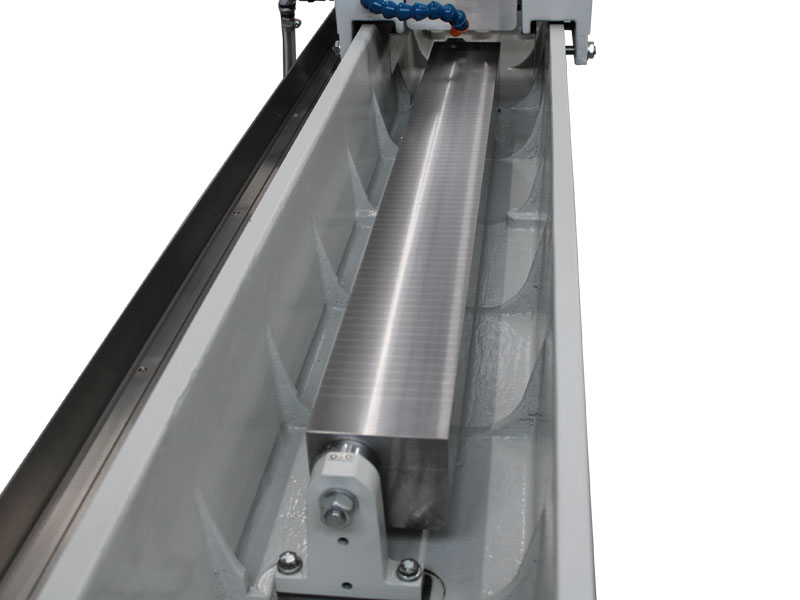

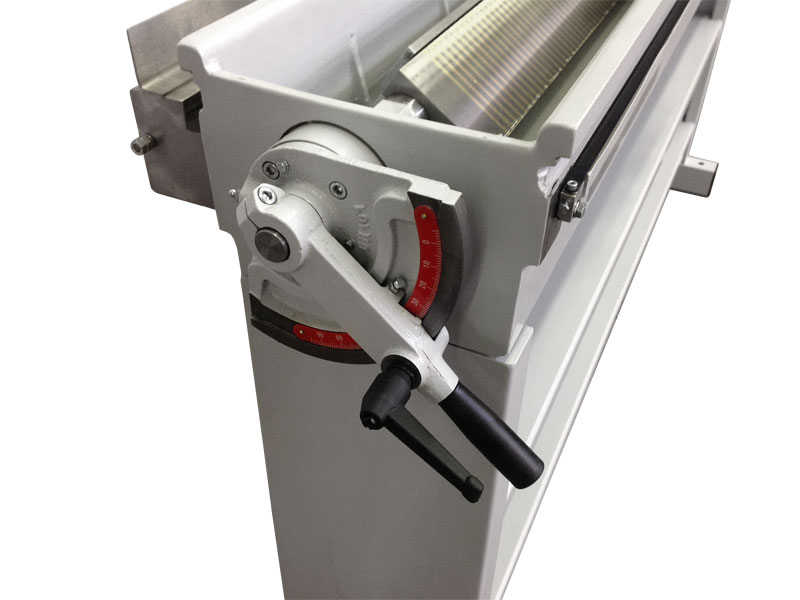

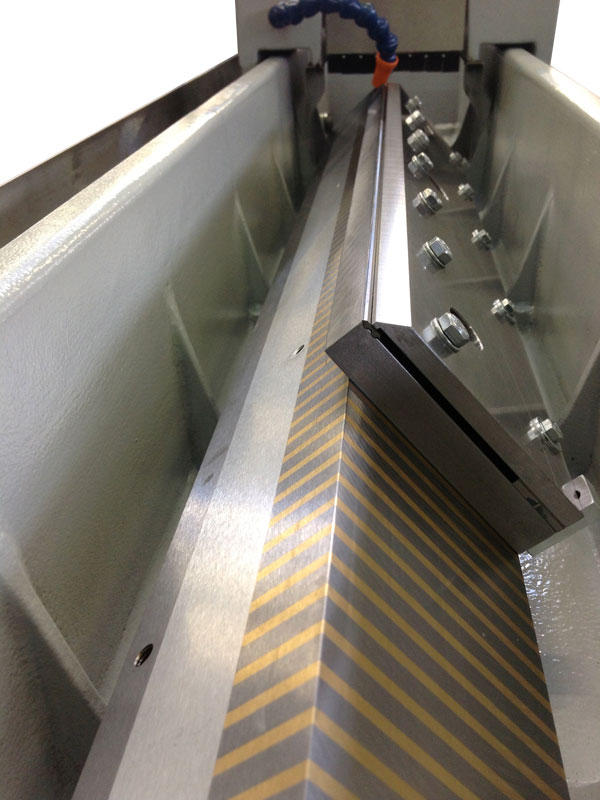

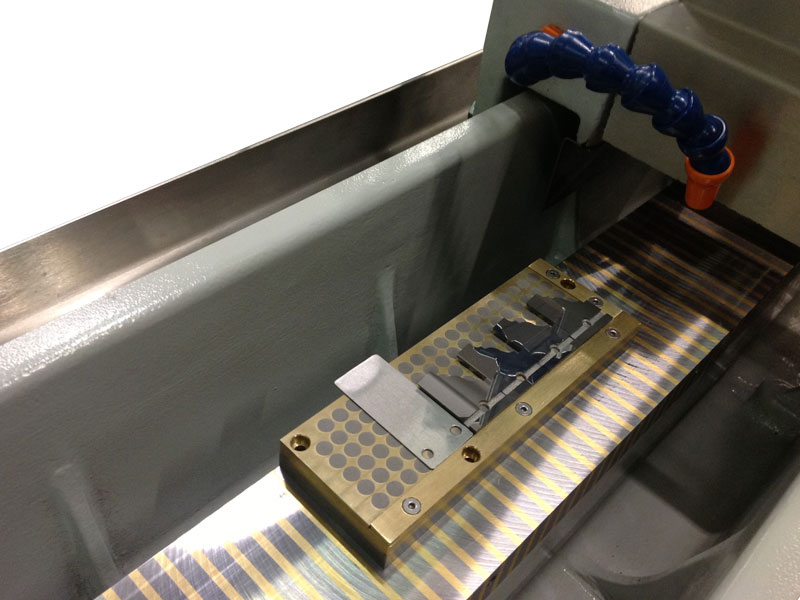

Sharpen compatible straight knives used in plastic granulating and recycling machinery. The rotating magnetic chuck allows suitable blade positioning, with grinding wheels and workholding selected for the knife material and geometry.
The ZX also suits wood chipper knives where the required blade length and grinding capacity fit the machine. For dedicated chipper knife sharpening and shorter blades, Tuckwell can help compare the ZX with the MVM BM Chipper Knife Sharpening Machine.
Suitable for planer knives and selected paper blades, with optional equipment available for disposable planer knives and profiled carbide inserts. For a machine specifically positioned around planer blade sharpening, see the MVM BM Planer Blade Sharpening Machine. Confirm the correct clamping arrangement and grinding wheel before ordering.
Sharp, correctly maintained granulator knives are important to the cutting process in plastic recycling. The ZX provides a dedicated straight-knife grinding solution for businesses that maintain compatible recycling blades in-house or provide a professional sharpening service.
Its 1,000 mm and 1,230 mm grinding-length options allow the machine to be matched to the dimensions of the knives being maintained. The rotating chuck, automatic downfeed and coolant system provide useful control when working with suitable industrial blades.
Before selecting a ZX, check the longest blade, knife material, cutting-edge geometry, mounting requirements and expected sharpening volume. Tuckwell can help confirm whether the ZX or another MVM model is the better fit.
Discuss Your Blade Requirements →The MVM ZX combines a rigid cast iron machine bed, automatic grinding-head downfeed and flexible knife-mounting options. Standard and optional equipment are listed separately below.

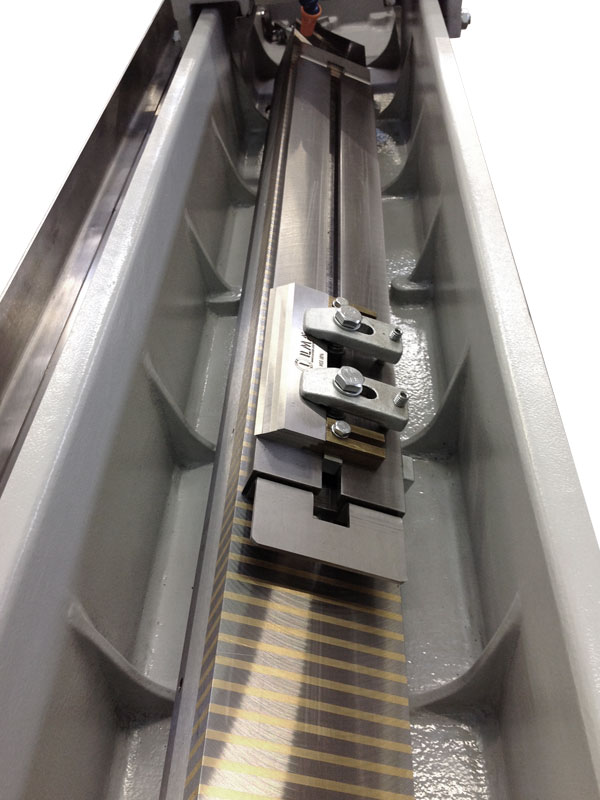

Additional equipment is available upon request. Tuckwell can help confirm the correct chuck, clamping device, motor and grinding-wheel arrangement for your intended blades.
Compare the two grinding lengths and key technical specifications of the MVM ZX1000 and ZX1230.
| Specification | ZX1000 | ZX1230 |
|---|---|---|
| Grinding length | 1,000 mm | 1,230 mm |
| Standard grinding motor | 1.5 kW (2 HP) | 1.5 kW (2 HP) |
| Optional grinding motor | 2.2 kW (3 HP) | 2.2 kW (3 HP) |
| Grinding wheel speed | 2,800 rpm | 2,800 rpm |
| Standard carriage speed | 11 m/min | 11 m/min |
| Optional variable carriage speed | 1–11 m/min | 1–11 m/min |
| Chuck width | 100 mm | 100 mm |
| Wheel-to-chuck clearance | 30 mm | 30 mm |
| Grinding wheel diameter | 150 mm | 150 mm |
| Minimum partial downfeed | 0.01 mm | 0.01 mm |
| Overall dimensions | 1,900 × 560 × 1,500 mm | 2,050 × 560 × 1,500 mm |
Watch the MVM ZX in operation and explore the manufacturer brochure for machine details, technical specifications and available accessories.
Review the manufacturer's machine information, technical specifications and available accessories for the ZX1000 and ZX1230.
Our team can help assess your blades and sharpening requirements before recommending a suitable machine and workholding setup.
Tuckwell Machinery is an Australian family-owned machinery supplier based in the Brisbane region, QLD. We help customers select equipment suited to their workshop and provide support beyond the initial purchase.
Practical guidance on blade dimensions, materials, grinding capacity and the right MVM configuration for your requirements.
Discuss delivery coordination, machine setup, commissioning and operator training with our team.
Machinery supply and technical assistance for customers across Australia from Tuckwell's Brisbane-based team.
Servicing, maintenance, technical support and spare-parts assistance to help keep your machinery operating.
Tell us about your granulator blades, knife dimensions and sharpening requirements. We can help confirm a suitable configuration, current options, pricing and availability.
Answers to common questions about granulator blade sharpening, ZX grinding lengths, standard equipment and choosing a suitable configuration.
Yes. MVM identifies plastic granulating and recycling knives as suitable ZX applications. The correct grinding wheel and workholding must be selected for the blade material, dimensions and edge geometry.
The ZX1000 has a 1,000 mm grinding length and the ZX1230 has a 1,230 mm grinding length. Confirm the length of your longest blade and the required mounting arrangement before selecting a model.
The standard grinding motor is 1.5 kW (2 HP) at 2,800 rpm. A 2.2 kW (3 HP) motor is available upon request.

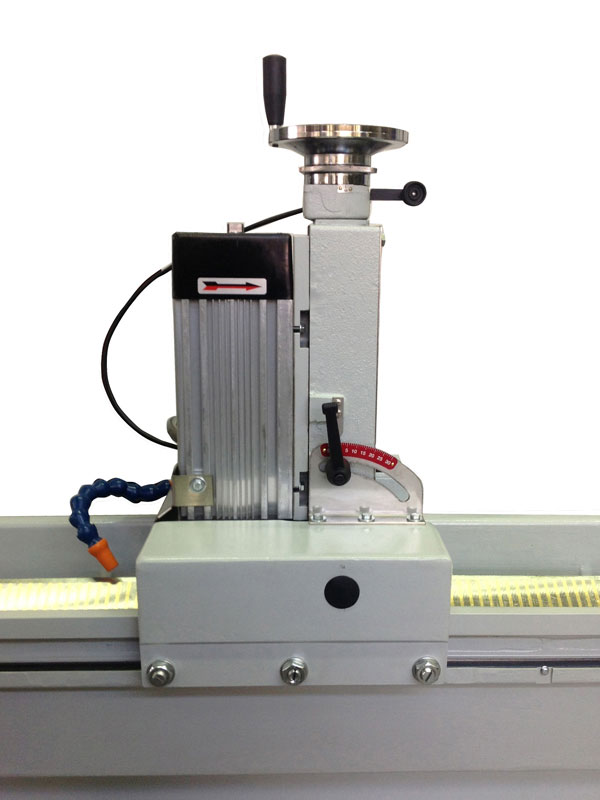

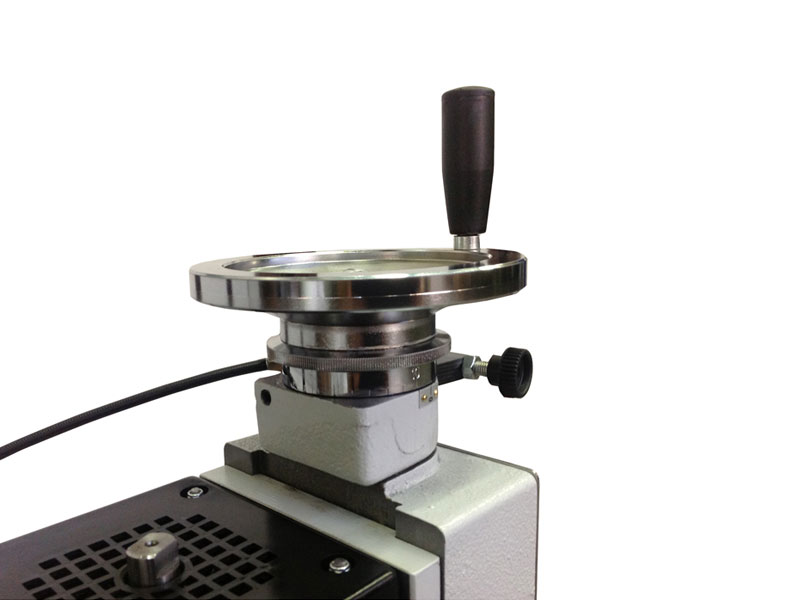

Yes. The ZX has automatic grinding-head downfeed with an automatic stop at a preset height. It also has a tilting head for hollow grinding and a chain-driven carriage.
Yes. The ZX suits compatible planer knives and, with the appropriate optional equipment, selected disposable planer knives and profiled carbide inserts. Confirm blade compatibility, clamping and grinding-wheel requirements with Tuckwell.
The BM is a compact option for shorter knives, the ZX offers 1,000 mm and 1,230 mm grinding lengths, and the MX150 is designed for longer blades and higher daily sharpening volumes. The correct model depends on the blade type, size and workload.
Yes. Tuckwell Machinery is based in the Brisbane region, QLD and supplies machinery Australia-wide, with machine selection, installation coordination, servicing and technical support available.
