Cutting from Below
The saw blade rises from below the workpiece using Elumatec's established cutting principle.

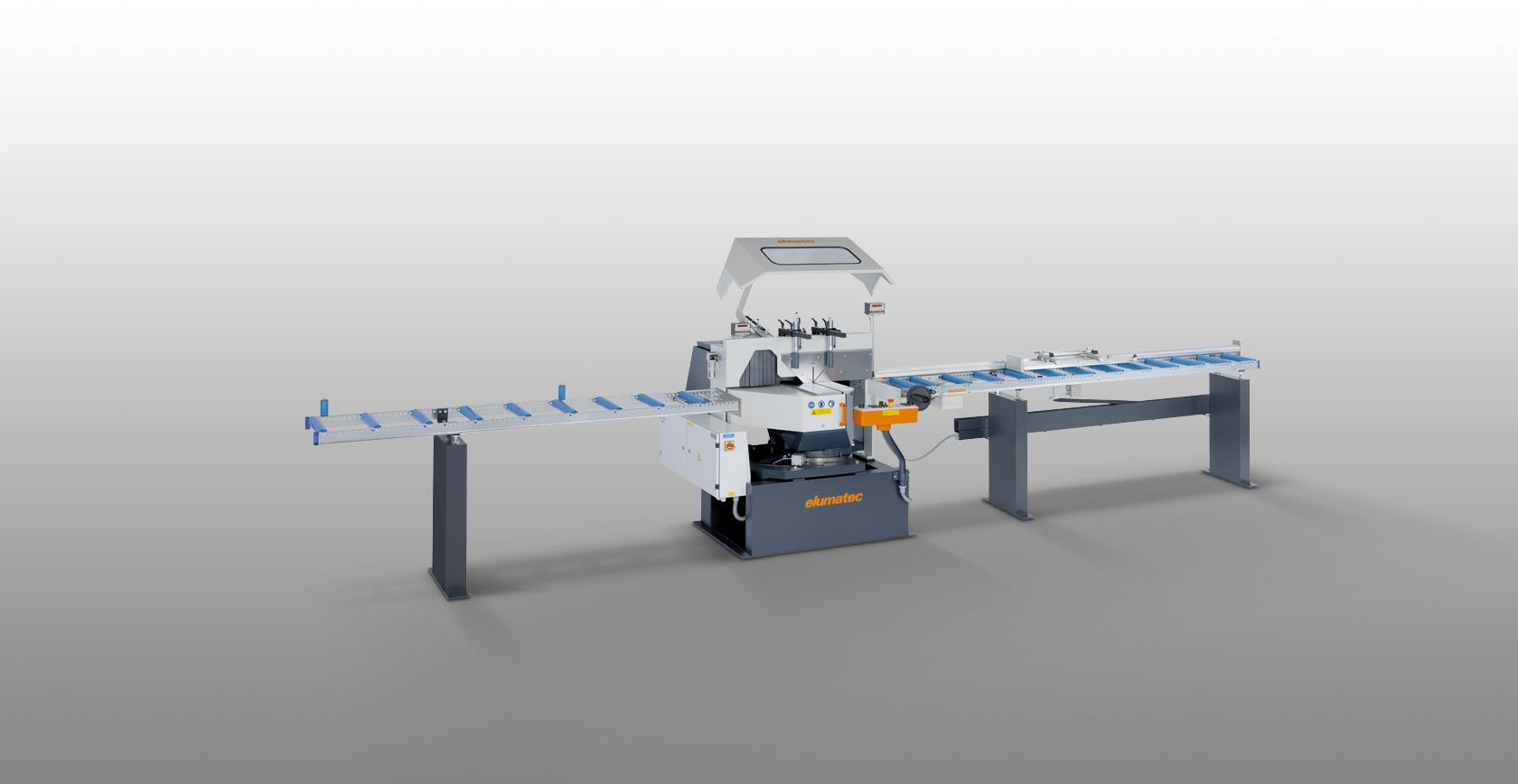

The Elumatec MGS 105 is a universal single mitre saw for specialist profile cutting applications, combining Elumatec's proven cutting-from-below principle with manual pivot adjustment and pneumatic tilt.
The MGS 105 is designed for specialist profile cutting where flexible angle adjustment, clear table access and controlled workpiece positioning are important. Elumatec's cutting-from-below system leaves the table surface accessible for loading and unloading profiles.
A patented saw arm suspension directs cutting pressure towards the rear fence to support secure clamping of the workpiece, while the safety hood opens automatically during operation.
The MGS 105 combines Elumatec's cutting-from-below design with flexible mitre adjustment, pneumatic tilt and practical workpiece access for specialist profile cutting.
The saw blade rises from below the workpiece using Elumatec's established cutting principle.
Free access to the table surface supports straightforward loading and unloading of profiles.
Manual pivot adjustment is combined with pneumatic tilting for flexible special-angle cutting.
The machine uses a 420 mm blade operating at a specified speed of 2,800 rpm.
The MGS 105 provides a combination of profile access, angle flexibility and secure workpiece positioning in a single-head machine.
Its patented saw arm suspension creates cutting pressure towards the rear fence, while the pulsed coolant system supports the cutting process.
The machine provides manual pivot adjustment and pneumatic tilt, supported by Elumatec's E111 digital display for the pivoting range.
Manual pivoting range to 22.5° to the left and right with digital display E111.
Pneumatic tilting range from 90° to 45° for additional cutting-angle flexibility.
The applicable workpiece cutting range is shown in the MGS 105 manufacturer's cutting diagram.
Several features of the MGS 105 are designed around practical loading, workpiece positioning and controlled cutting.
Technical data for the Elumatec MGS 105/01.
| Specification | MGS 105 / 01 |
|---|---|
| Pivoting Range | Manually 22.5° to the left and right with digital display E111 |
| Tilting Range | Pneumatically from 90° to 45° |
| Saw Blade Diameter | 420 mm |
| Saw Blade Speed | 2,800 rpm |
| Power Supply | 230/400 V, 3~, 50 Hz |
| Power Output | 4 kW |
| Compressed Air Supply | 7 bar |
| Air Consumption per Working Cycle | 20 L without spraying / 32 L with spraying |
| Machine Length | 1,400 mm |
| Machine Depth | 1,500 mm |
| Machine Height | 1,880 mm |
| Machine Weight | 750 kg |
Machine specifications and available options may change. Confirm the current specification and suitable machine configuration with Tuckwell Machinery before ordering.
Explore related products and workshop equipment available from Tuckwell Machinery, and confirm the final MGS 105 configuration with the Tuckwell team.
Tuckwell can help compare the MGS 105 with the broader Elumatec machinery range based on the profiles you process, cutting angles required and your production setup.
Tuckwell Machinery supports manufacturers with Elumatec machinery advice, machine supply, installation, operator training, servicing assistance and parts support.
Practical assistance comparing Elumatec machinery around your production requirements.
Advice based on profile sizes, cutting requirements, production needs and workshop layout.
Support with installation, setup and operator training for Elumatec machinery supplied by Tuckwell.
Technician-backed servicing assistance and parts support for Elumatec machinery supplied by Tuckwell.
Tell us about the profiles you cut, the angles you require and your production requirements. We can help determine whether the MGS 105 suits your workshop.
Technical questions about the Elumatec MGS 105 single mitre saw.
The Elumatec MGS 105 uses a 420 mm diameter saw blade.
The specified saw blade speed is 2,800 rpm.
The MGS 105 has manual pivot adjustment to 22.5° to the left and right with Elumatec's E111 digital display.
Yes. The MGS 105 has pneumatic tilting from 90° to 45°.
Elumatec specifies a power output of 4 kW for the MGS 105.
The specified compressed air supply is 7 bar.
The MGS 105 measures approximately 1,400 mm long, 1,500 mm deep and 1,880 mm high.
The specified machine weight is 750 kg.
Available options include an extraction system, length stop and measuring systems, roller conveyors, saw blades and high-performance cutting fluid.
