Aluminium Fabrication
Accurate cutting of aluminium profiles for fabrication businesses working across commercial, architectural and custom aluminium applications.

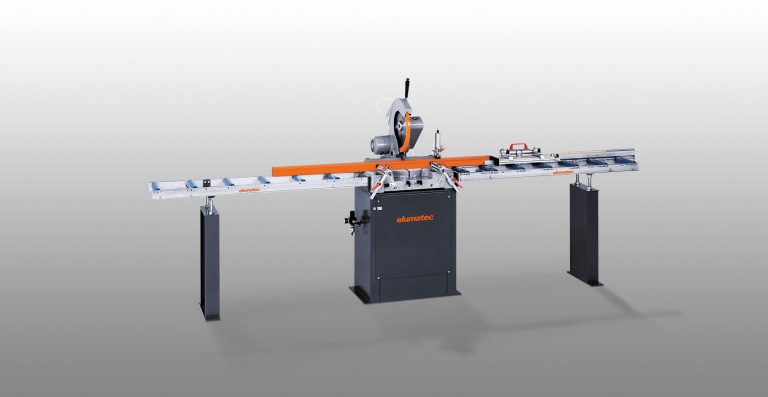

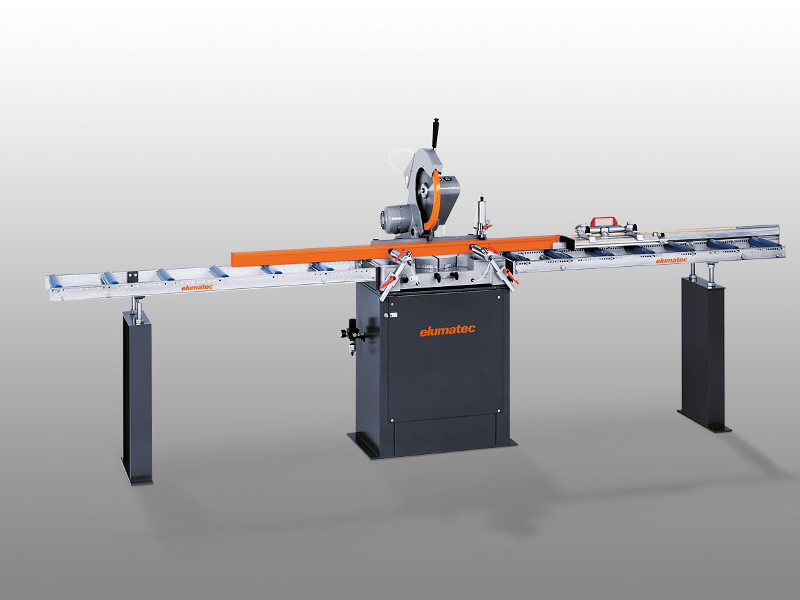

The Elumatec MGS72 is a professional aluminium drop saw built for accurate, repeatable cutting of aluminium profiles. This single-head saw combines precise angle adjustment, robust German engineering and practical workshop operation for aluminium fabrication and production environments.
The Elumatec MGS72 drop saw is designed for workshops that need clean, accurate and repeatable cuts across aluminium profiles. Elumatec classifies the MGS72 as a single mitre saw, while in Australian workshops this style of machine is also commonly referred to as an aluminium drop saw. Its solid construction, precision-mounted turntable and 0° to 45° pivoting range to both the left and right make it well suited to aluminium fabricators, window and door manufacturers and businesses completing regular profile cutting.
For businesses searching for a professional aluminium drop saw or aluminium chop saw for profile cutting, the MGS72 provides a workshop-grade solution backed by Tuckwell Machinery's technical knowledge, servicing and after-sales support.
The MGS72 is designed for accurate manual cutting of aluminium profiles where dependable angle adjustment, repeatability and workshop durability are important.
Accurate cutting of aluminium profiles for fabrication businesses working across commercial, architectural and custom aluminium applications.
Well suited to accurate profile cutting where consistent dimensions and repeatable mitre angles are required for window fabrication.
Provides controlled mitre cutting for aluminium door profiles and related components where clean, accurate cuts are essential.
Robust construction and straightforward manual operation make the MGS72 suitable for regular workshop use and repeat cutting tasks.
The MGS72 has been engineered around accurate, repeatable mitre cutting. Its turntable pivots from 0° to 45° to both the left and right, giving operators the flexibility to process aluminium profiles across a range of common cutting angles.
Positive location points at 15°, 30° and 45° simplify commonly used settings and help operators return quickly to the required position without repeatedly measuring the angle.
The MGS72 combines a stable cutting platform, accurate angle positioning and straightforward operator control in a compact professional aluminium cutting machine.

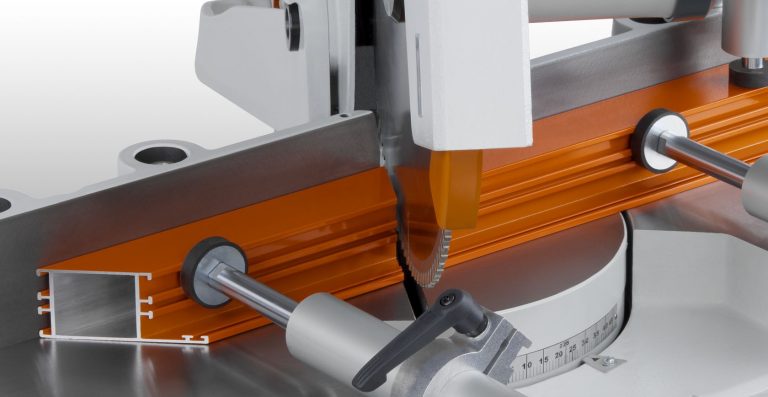

A ground support surface and precision-mounted turntable provide a stable platform for accurate aluminium profile cutting.
The multi-V belt drive is designed for smooth operation and dependable performance during regular workshop use.
Optional equipment allows the MGS72 to be configured around the workflow and measuring requirements of the workshop.
Cutting accuracy relies on more than blade speed alone. The MGS72 uses a stable, ground continuous support table together with a precision-mounted turntable to provide a solid cutting platform for aluminium profiles.
This construction helps maintain consistent positioning as the mitre angle is changed and supports accurate results across repeated cutting tasks.
A wear-resistant multi-V belt drive provides smooth and quiet power transmission while helping minimise unnecessary vibration during cutting.
When workshops search for an aluminium drop saw, they are often looking for a compact machine that can make accurate straight and angled cuts through aluminium profiles. The MGS72 is designed specifically for this type of professional fabrication work, with a stable support system and precise left- and right-hand angle adjustment.
Workshops cutting aluminium regularly may need greater repeatability and more precise angle control than a general-purpose saw can provide. The MGS72 is purpose-built for professional aluminium profile cutting and repeat workshop use.

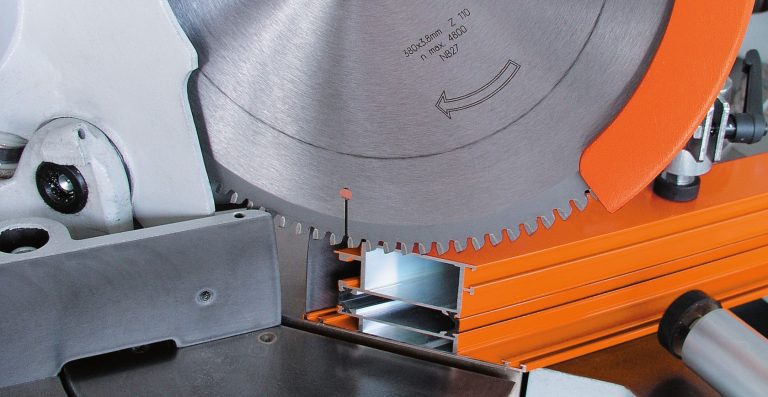

The MGS72 combines a 380 mm saw blade, precision turntable and configurable workshop accessories to create a practical aluminium cutting system for professional fabrication environments.
Different workshops have different measuring, material-handling and production requirements. The MGS72 can be complemented with optional equipment to create a more complete aluminium cutting station.
Tuckwell Machinery can help determine which accessories are appropriate based on the profiles being processed, the lengths involved and the level of repeatability required.
Key specifications for the MGS72 aluminium drop saw are shown below. Speak with Tuckwell Machinery about your intended application and required configuration before ordering.
| Specification | Elumatec MGS72 |
|---|---|
| Saw Blade Diameter | 380 mm |
| Saw Blade Speed | 2,800 rpm |
| Power Output | 3 kW |
| Power Supply | 230/400 V, 3~, 50 Hz |
| Mitre Range | 0° – 45° left and right |
| Positive Stops | 15°, 30° and 45° |
| Machine Length | 780 mm |
| Machine Depth | 900 mm |
| Machine Height | 815 mm |
| Weight | Approx. 120 kg |
See the MGS72 and its aluminium cutting setup in greater detail before discussing the machine with the Tuckwell Machinery team.
If you are comparing aluminium drop saws or other Elumatec profile-cutting machines for your workshop, we can help assess the profiles you cut, required angles, material lengths and expected production volume.
Tell us what you are cutting and how you work. Our team can help determine whether the MGS72 or another Elumatec saw is better suited to your production requirements.
Choosing the right aluminium cutting machine is only part of the decision. Tuckwell Machinery backs the equipment we supply with practical advice, technical knowledge and long-term after-sales support.
Tuckwell Machinery is an authorised Queensland dealer for Elumatec machinery, providing Queensland businesses with local access to equipment, technical knowledge and product support.
Our team understands the machinery we supply and can provide practical guidance on machine selection, setup and operation.
We can assist with delivery coordination, installation, machine setup and practical guidance to help integrate new machinery into your workshop.
Tuckwell provides ongoing technical support, servicing assistance and access to spare parts to help keep your machinery productive.
Looking for an aluminium drop saw for your fabrication business? Tell us what you cut, your profile sizes and your production requirements and we can help determine whether the MGS72 is the right machine for your workshop.
Answers to common questions about the MGS72, aluminium drop saw applications and choosing a professional saw for aluminium profile cutting.
Yes. The Elumatec MGS72 is designed for cutting aluminium profiles and is suited to fabrication, window and door manufacturing and other professional aluminium processing applications.
Yes. The MGS72 has a pivoting range from 0° to 45° in both directions, with positive location points at 15°, 30° and 45° for commonly used mitre angles.
Yes. In Australian workshop terminology, the MGS72 can reasonably be described as an aluminium drop saw because the cutting head is manually fed through the profile. Elumatec officially classifies the MGS72 as a mitre saw, and it is designed for accurate straight and angled cutting of aluminium profiles.
The Elumatec MGS72 uses a 380 mm saw blade and has a listed saw blade speed of 2,800 rpm.
The MGS72 has a listed power output of 3 kW with a 230/400 V, three-phase, 50 Hz power supply.
Optional equipment can include pneumatic clamping units, length stops, measuring systems, roller conveyors, pulsed coolant equipment and suitable cutting-fluid systems. The appropriate setup depends on your workshop and cutting requirements.
Yes. Tuckwell Machinery provides technical and after-sales support for the machinery it supplies, including servicing assistance and access to spare parts.
