Cutting from Below
Elumatec's upcut design brings the saw blade through the workpiece from below for precise profile cutting.

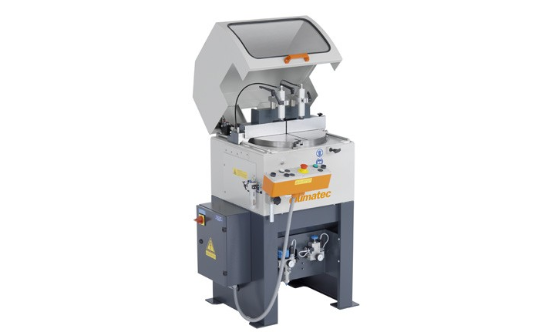

The Elumatec TS 161 is a compact upcut saw and table saw range for precision profile cutting. Using Elumatec's cutting-from-below principle, the TS 161 provides straight and angled cutting with a wide pivoting range and practical front access.
The TS 161 uses a cutting-from-below design for accurate profile cutting. Its special pivoting mechanism incorporates a turntable, allowing the operator to work from the front across the machine's available angle settings.
The adjustable workpiece stop can be moved to make better use of the blade capacity when processing wide and flat profiles, while different TS 161 configurations provide manual or pneumatic clamping and feed options.
The TS 161 combines Elumatec's cutting-from-below principle with flexible angle adjustment and a compact table-saw design for profile fabrication.
Elumatec's upcut design brings the saw blade through the workpiece from below for precise profile cutting.
The TS 161 pivots up to 45° to the left and to 0° on the right for straight and angled cutting.
The integrated turntable and pivoting mechanism allow the machine to be operated from the front at each angle setting.
The workpiece stop can be moved back to optimise blade capacity when processing wide and flat profiles.
The Elumatec TS 161 is designed around a compact table-saw format with cutting from below. The standard TS 161/00 uses manual saw feed and manual vertical material clamping.
The TS 161/21 adds a machine base, pneumatic vertical clamping, pulsed coolant system and maintenance unit, while the TS 161/30 adds pneumatic saw feed and a manual safety hood.
Elumatec offers several TS 161 configurations. The core range includes the table-top TS 161/00 together with machine-base and pneumatic-feed versions.
Table-top configuration with manual saw feed and manual vertical material clamping.
Compact table-top machineAdds a machine base, pneumatic vertical material clamping, pulsed coolant system and maintenance unit.
Pneumatic material clampingBased on the TS 161/21 with pneumatic saw feed and a manual safety hood.
Pneumatic saw feedThe Elumatec upcut saw combines flexible angle adjustment with practical workpiece positioning and different clamping options across the TS 161 range.
Core technical data for the TS 161 aluminium table saw range.
| Specification | TS 161 |
|---|---|
| Model Range | TS 161/00, TS 161/21, TS 161/22, TS 161/30 and TS 161/31 |
| Cutting Principle | Cutting from below |
| Pivoting Range | Up to 45° left and 0° right |
| Cutting Range | Refer to the applicable cutting diagram |
| Saw Blade Diameter | 280 mm |
| Saw Blade Speed | 3,200 rpm |
| Power Output | 1.05 kW |
| Power Supply | 230/400 V, 3~, 50 Hz |
| Machine Length | 650 mm |
| Machine Depth | 750 mm |
| Machine Height | 1,300 mm |
| Standard Machine Weight | 130 kg |
| TS 161/30 Weight | 170 kg |
Machine features vary by TS 161 configuration. Cutting capacity depends on the workpiece profile and angle. Confirm the current specification and suitable machine configuration with Tuckwell Machinery before ordering.
Elumatec lists digital pivot-angle display, a manual safety hood, extraction system, length stop and measuring systems, roller conveyors, saw blades and high-performance cutting fluid among the available TS 161 options.
See the TS 161 upcut saw in operation and view the cutting-from-below principle used across the range.
Tuckwell can help determine which TS 161 configuration suits the profiles you process, your preferred saw-feed system and your workpiece-handling requirements.
Tuckwell Machinery supports manufacturers with Elumatec machinery advice, machine supply, installation, operator training, servicing assistance and parts support.
Practical assistance choosing suitable Elumatec cutting and profile-processing machinery.
Advice based on profile sizes, cutting angles, clamping requirements and production needs.
Support with installation, setup and operator training for Elumatec machinery supplied by Tuckwell.
Technician-backed servicing assistance and parts support for Elumatec machinery supplied by Tuckwell.
Tell us about the profiles you cut, your required angles and preferred clamping or saw-feed configuration. Tuckwell can help identify the appropriate TS 161 setup for your workshop.
Common questions about the Elumatec TS 161 upcut saw and aluminium table saw range.
The Elumatec TS 161 uses a cutting-from-below principle, where the saw blade approaches the workpiece from beneath the profile. It is designed for straight and angled profile cutting.
Yes. Elumatec classifies the TS 161 as a table saw. The TS 161/00 is a table-top unit, while other versions add a machine base and additional pneumatic functions.
The TS 161 uses a 280 mm diameter saw blade.
The specified saw blade speed is 3,200 rpm.
The TS 161 has a pivoting range of up to 45° to the left and up to 0° to the right.
The TS 161/00 is a table-top unit with manual saw feed and manual vertical material clamping. The TS 161/21 adds a machine base, pneumatic vertical clamping, pulsed coolant system and maintenance unit.
The TS 161/30 is based on the TS 161/21 and adds pneumatic saw feed and a manual safety hood.
Elumatec specifies a power output of 1.05 kW for the TS 161.
The published dimensions are approximately 650 mm long, 750 mm deep and 1,300 mm high. The standard listed weight is 130 kg, while the TS 161/30 is listed at 170 kg.
Elumatec lists a digital pivot-angle display, manual safety hood, extraction system, length stop and measuring systems, roller conveyors, saw blades and high-performance cutting fluid among the available options.
