Pre-milling with diamond tooling
Prepares the panel edge before glue application, helping achieve a clean, consistent surface for edge banding.
A compact, production-ready automatic edgebander featuring pre-milling, precision corner rounding, trimming, scraping and buffing for professional cabinet making and joinery workshops.

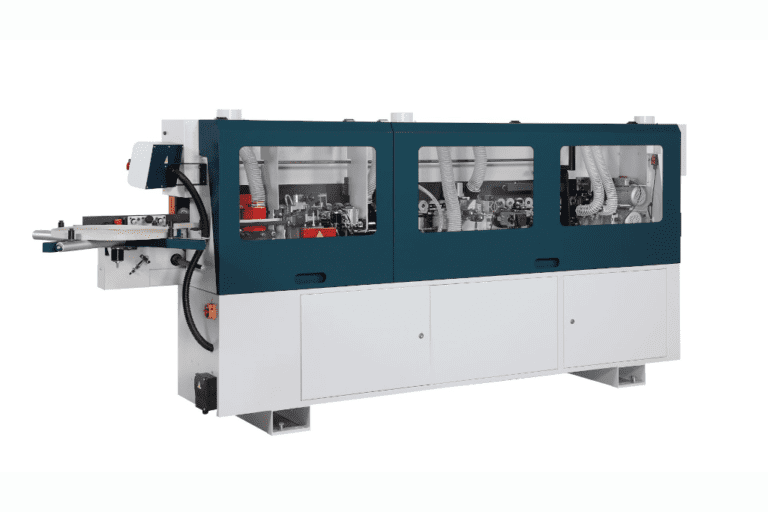

The OAV Max 370P is a compact, production-ready edge banding machine designed for cabinet makers, furniture manufacturers and joinery workshops that require corner rounding capability and a consistently clean edge finish.
Combining pre-milling, end trimming, corner rounding, radius trimming, radius and glue scraping, and buffing, the OAV Max 370P provides a comprehensive range of finishing functions within a compact 3,700 mm machine. This helps reduce manual finishing and keeps panel production moving efficiently.
The machine also features a touch screen control system, gloss and nesting tracers, diamond tooling and a quick-change Teflon-lined glue pot. These functions make it a practical choice for workshops producing kitchen cabinetry, furniture, vanities and custom joinery.
Tuckwell Machinery supplies the OAV Max 370P throughout Australia, backed by experienced technicians, machinery advice, installation assistance, servicing and spare parts support for the machines we supply.
Explore the full OAV edgebander range to compare available machines for your workshop.
The OAV Max 370P is well suited to cabinet makers, joinery businesses, furniture manufacturers and woodworking workshops that need the benefits of automatic corner rounding without moving into a considerably larger edgebanding system.
Its combination of pre-milling, trimming, corner rounding and finishing functions makes it particularly useful for workshops producing a variety of cabinet panels, furniture components and custom joinery. The integrated finishing process helps achieve consistent results while reducing time spent on manual touch-ups.
The OAV Max 370P combines precision edge preparation, glue application, trimming and finishing functions to help workshops produce professional-quality edged panels with less manual finishing.
Prepares the panel edge before glue application, helping achieve a clean, consistent surface for edge banding.
Diamond tooling rounds the panel corners, providing a more complete finished edge on suitable cabinet and furniture components.
Radius scraping, glue scraping and buffing support a cleaner final edge and help reduce manual finishing work.
PLC parameters and temperature controls provide convenient operation and management of machine functions.
The following specifications provide a general overview of the OAV Max 370P Edgebander. Please confirm current model details, available configurations and installation requirements with Tuckwell Machinery before ordering.
| Specification | OAV Max 370P Details |
|---|---|
| Feed Speed | 9 m/min |
| Panel Thickness | 8–45 mm |
| Edge Thickness | 0.4–3 mm coil, up to 4 mm strip |
| Minimum Panel Width | 90 mm |
| Minimum Panel Length | 170 mm / 300 mm |
| Maximum Panel Height | 45 mm |
| Direction of Feed | Right to left |
| Machine Length | 3,700 mm |
| Working Table Height | 960 mm |
| Extensible Support Width | 560 mm |
| Extraction Connectors | Ø125 mm × 3 |
| Total Power | 6.7 kW |
| Pre-Milling Speed | 12,000 rpm |
| End Trimming Speed | 12,000 rpm |
| Up/Down Trimming Speed | 12,000 rpm |
| Corner Rounding Speed | 12,000 rpm |
| Buffing Speed | 3,400 / 2,800 rpm at 60 / 50 Hz |
| Manufacturing | Quality Taiwanese engineering |
Specifications may vary depending on machine configuration. Contact Tuckwell Machinery to confirm current technical details, available options and suitability for your workshop.
The OAV Max 370P is an excellent option for workshops wanting a balance of compact machine size, advanced finishing features and efficient everyday operation.
Its corner rounding capability is particularly valuable for cabinet makers and furniture manufacturers who want a more complete finished panel directly from the machine.
Combined with pre-milling, precision trimming, radius and glue scraping, and buffing, the OAV Max 370P helps reduce the need for additional hand finishing while maintaining edge quality across regular production.
Tuckwell Machinery is an Australian family-owned machinery supplier with experienced technicians who understand the demands of professional woodworking and joinery production.
We help cabinet makers and manufacturers choose machinery that suits their production requirements, workshop space and finishing expectations. Our focus extends beyond the initial sale, with technical knowledge and ongoing support for the machinery we supply.
Speak with Tuckwell Machinery about the OAV Max 370P and whether its corner rounding and finishing functions suit your cabinet making, joinery or furniture manufacturing requirements.
Tuckwell Machinery supplies a wide range of woodworking equipment for Australian cabinet makers, furniture manufacturers and joinery workshops. Explore our related machinery to find equipment that complements your production requirements.
The OAV Max 370P is a compact automatic edgebander designed for professional cabinet making and woodworking workshops. It combines pre-milling, glue application, end trimming, corner rounding, radius trimming, scraping and buffing functions.
Yes. The OAV Max 370P includes corner rounding with diamond tooling. This helps workshops achieve a more complete finish on suitable cabinet panels, furniture components and custom joinery.
The OAV Max 370P is specified for panels between 8 mm and 45 mm thick. It accommodates edge material from 0.4 mm to 3 mm in coil form and up to 4 mm in strip form. Confirm material compatibility with Tuckwell Machinery before ordering.
The OAV Max 370P has a feed speed of 9 metres per minute, providing consistent panel movement through the machine during edge banding.
Yes. Tuckwell Machinery supplies woodworking machinery throughout Australia and provides technical advice, installation assistance, servicing and spare parts support for the machines we supply.
