Casolin Astra 500 Panel Saw

Casolin Astra CNC Panel Saw

CNC Panel Saw

Casolin Astra 500 CNC Panel Saw

Industrial CNC Sliding Table Panel Saw – Made in Italy

Tuckwell Machinery supplies and supports the Casolin Astra 500 CNC Panel Saw, an advanced CNC panel saw designed for high-accuracy, high-production woodworking environments. Built in Italy and engineered for industrial use, the Astra 500 range combines the precision of a traditional sliding table panel saw with the efficiency and repeatability of CNC-controlled positioning.

Unlike entry-level machines, the Casolin panel saw range offers true CNC functionality across multiple axes, enabling automatic positioning of the saw blade, scoring unit and parallel fence. This allows operators to achieve faster setup times, repeatable accuracy and consistent cut quality — even during long production runs or multi-shift operation.

Available in multiple CNC configurations, the Astra 500 CNC panel saw machine is suited to cabinet makers, joinery workshops and manufacturers seeking a robust, European-built solution where precision, durability and operator efficiency are critical.

“For workshops looking to step up from a conventional slider, the Casolin Astra 500 delivers true CNC control without sacrificing the robustness of an industrial panel saw.”

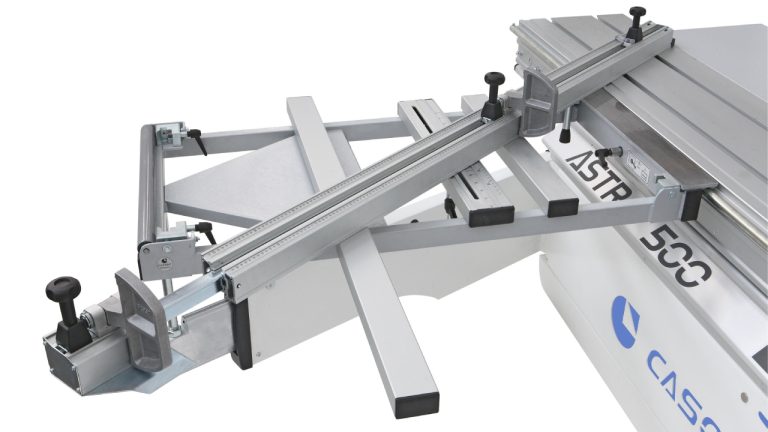

Casolin Panel Saw

Casolin Astra 500 CNC – Industrial CNC Panel Saw with Multi-Axis Control

Precision, power and repeatability define the Casolin Astra 500 CNC panel saw. Built on a heavy-duty steel base filled with reinforced concrete, this CNC panel saw machine is engineered to deliver exceptional rigidity, vibration control and cutting accuracy in demanding production environments. The industrial sliding table runs on precision rollers and linear guides designed specifically for dusty woodworking conditions.

Unlike conventional sliding saws, the Casolin panel saw range offers true CNC-controlled positioning of critical components. Depending on configuration, the Astra 500 provides CNC control of the saw blade height and tilt, scoring unit and parallel fence, ensuring fast setup, automatic correction when tilting and highly repeatable results across long production runs.

Available CNC configurations: 5-axis CNC, 5-axis CNC Posit, 5-axis CNC QCP, and full 6-axis CNC with touch screen control

Sliding table lengths: 2600 / 3200 / 3800 / 4300 / 5000 mm

Main blade diameter: 300–500 mm (optional 550 mm without scoring unit)

Blade speeds: 3,000 / 4,200 / 5,000 RPM (higher range available with inverter option)

Motorised movements: CNC-controlled blade lift, blade tilt and fence positioning (model dependent)

Industrial blade unit: Fully cast iron tilting group from 0° to 45.5° with linear guides and oversized bearings for accuracy and vibration reduction

Casolin Astra 500 CNC panel saw — Italian-built industrial CNC sliding table saw combining mechanical rigidity with CNC-controlled precision.

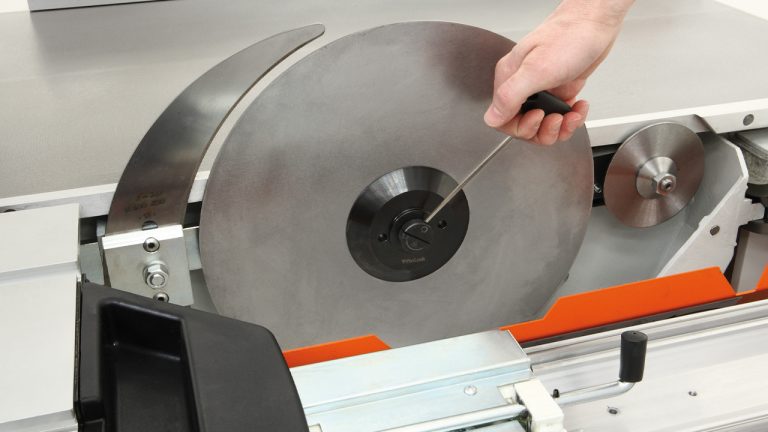

cnc panel saw machine



Key Features of the Casolin Astra 500 CNC Panel Saw

Built for high-production environments, the Casolin Astra 500 CNC panel saw combines Italian mechanical engineering with advanced CNC-controlled precision. The result is a machine designed for accuracy, repeatability and long-term industrial reliability.

  • DESIGNED & MANUFACTURED IN ITALY — European build quality, precision engineering and long-term industrial reliability
  • PATENTED CHROMED ROD SLIDING TABLE — Available in 2600 mm, 3200 mm and 3800 mm lengths for smooth, accurate panel handling
  • WINDOWS-BASED CNC TOUCH SCREEN CONTROL — Offered in 5-axis or full 6-axis configurations depending on model
  • PROGRAMMABLE CNC POSITIONING — Automatic control of rip fence, blade height and blade tilt with correction during angled cutting
  • PROGRAMMABLE CROSSCUT SYSTEM (6-AXIS) — Heavy-duty crosscut fence with flip-over stops and chromed outrigger support arm
  • PATENTED PLS TILTING CROSSCUT SYSTEM — Fast, precise mitre cutting with digital angle readout up to ±46°
  • HIGH-POWER DRIVE SYSTEM — 7.5 HP main motor with integrated brake and 1 HP scoring motor for clean panel edges
  • FULL CAST IRON SAW UNIT — Engineered to minimise vibration, maximise cut stability and extend blade life
  • CENTRALISED LUBRICATION SYSTEM — Simplifies maintenance and supports continuous industrial operation
  • EXTENSIVE OPTIONAL CONFIGURATIONS — Wide range of accessories available to tailor the CNC panel saw to specific production requirements

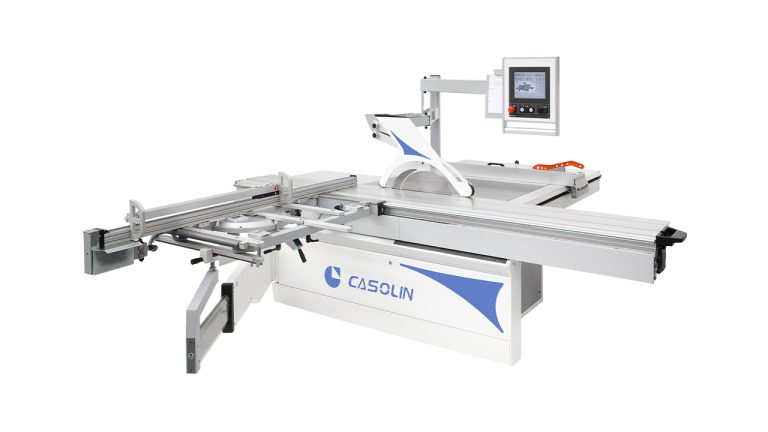

CNC Panel Saw

Casolin Astra 500 CNC Panel Saw – Available Versions

ModelCNC ControlKey FeaturesBest Suited For
Astra 500 – BaseMotorised blade movementsElectric blade lift and tilt, heavy-duty sliding table, cast iron blade unit, Easy-Fix blade systemWorkshops seeking industrial build quality with powered adjustments
Astra 500 – 5 CNC Posit5-axis CNC positioningCNC positioning of saw blade, scoring blade and parallel fence, robust control panel, Easy-Fix blade systemCabinet makers requiring repeatable accuracy and faster setup
Astra 500 – 5 CNC QCP5-axis CNC with hanging control panelCNC-controlled blade, scoring unit and fence positioning with suspended control panel for improved ergonomicsProduction environments prioritising operator efficiency and workflow
Astra 500 – 6 CNC Touch Screen6-axis CNC with touch screen interfaceFull CNC control with large touch screen, automatic correction when tilting, program storage, digital positioning and diagnosticsHigh-volume manufacturers seeking maximum automation, repeatability and CNC precision

Download the full Casolin Astra 500 CNC Panel Saw brochure (PDF) for detailed specifications, available configurations and technical information.

Casolin CNC Panel Saw Support & Service in Australia

Investing in a CNC panel saw is a long-term decision, and reliable local support is just as critical as machine capability.  Tuckwell Machinery, supplies, services and supports the Casolin Astra 500 CNC panel saw with a strong focus on technical expertise, parts availability and after-sales reliability. We are technicians first — not just machinery resellers. Our team understands the mechanical and CNC systems that underpin the Casolin panel saw range, allowing us to provide informed advice, accurate setup support and ongoing service throughout the working life of the machine. Local technical support from experienced machinery technicians familiar with Casolin CNC systems Genuine spare parts access to minimise downtime and protect long-term accuracy Installation and commissioning support for CNC panel saws in production environments Ongoing service capability for workshops operating continuous or multi-shift production schedules Whether you’re upgrading from a conventional sliding table saw or introducing CNC-controlled panel processing into your workflow, our team supports you from selection through to long-term operation — ensuring your Casolin Astra 500 CNC panel saw performs as intended.

Applications – Who the Casolin Astra 500 CNC Panel Saw Is Suited For

The Casolin Astra 500 CNC panel saw is designed for professional woodworking environments where accuracy, repeatability and production efficiency are critical. Combining industrial mechanical construction with CNC-controlled positioning, this Casolin panel saw suits workshops that need consistent results across long production runs.

This CNC panel saw is ideally suited to:

Cabinet makers producing kitchens, wardrobes and custom cabinetry who benefit from CNC positioning for faster setup and repeatable accuracy

Joinery workshops handling complex panel sizing, angled cuts and high-precision work for commercial and architectural projects

Furniture manufacturers processing large-format panels where cut quality, consistency and efficiency directly impact downstream edging and assembly

Industrial woodworking operations running one or multiple shifts that require a robust, low-vibration CNC panel saw built for long-term reliability

With multiple CNC configurations available, the Astra 500 range allows workshops to choose the level of automation that best matches their workflow — from CNC-assisted positioning through to full touch screen CNC control.

Explore Related Machinery


Call (07) 3805 5444
or Request More Info or a Quote
Delivery available Australia-wide


FAQs – Casolin Astra 500 CNC Panel Saw

Is the Casolin Astra 500 a true CNC panel saw?
Yes. The Casolin Astra 500 is a true CNC panel saw, offering CNC-controlled positioning of the saw blade, scoring unit and parallel fence. Depending on the version, it is available with 5-axis or full 6-axis CNC control.
What is the difference between the 5 CNC and 6 CNC versions?
The 5 CNC versions provide CNC positioning with digital displays and push-button control, while the 6 CNC version adds a full touch screen interface, program storage and automatic correction during blade tilt and angled cutting.
Is the Astra 500 suitable for high-production environments?
Yes. With its reinforced base, fully cast iron saw unit, centralised lubrication and CNC positioning, the Astra 500 is designed for continuous use in industrial cabinet making and manufacturing environments.
What materials can be cut on the Casolin Astra 500 CNC panel saw?
The machine is designed for cutting MDF, particleboard, laminated boards and similar sheet materials commonly used in cabinetry, joinery and furniture manufacturing.
Do you service and support Casolin CNC panel saws in Australia?
Yes. Tuckwell Machinery supplies, services and supports Casolin CNC panel saws with trained technicians, genuine spare parts and ongoing support available Australia-wide.
