400 mm Main Blade
Maximum 400 mm main saw blade diameter with a 30 mm main shaft.

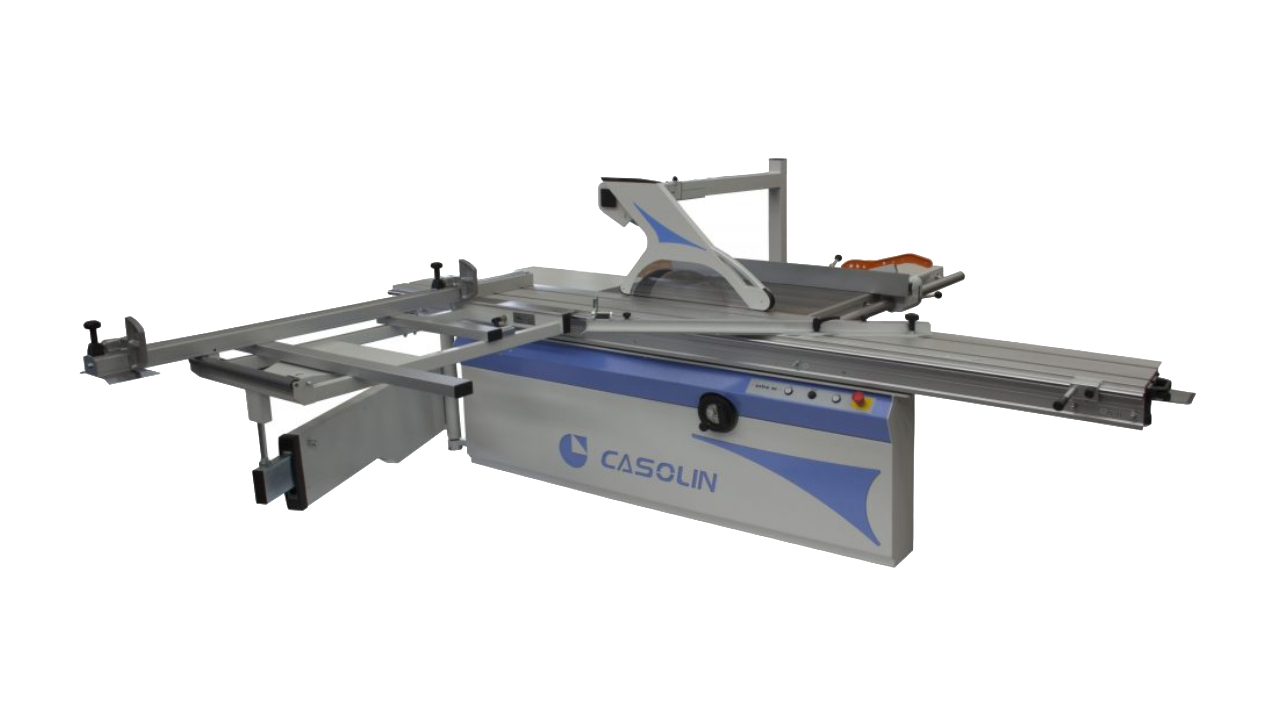

The Casolin Astra SE400 is a heavy-duty manual sliding table saw built for professional woodworking workshops requiring a rigid, accurate machine with a 400 mm main blade, manual blade rise and tilt, and a wide anodised aluminium carriage.
The Casolin Astra SE400 combines Italian-built construction with a practical manual operating format for cabinet makers, joiners, furniture manufacturers and other professional woodworking businesses. The saw unit tilts from 0–45°, while blade lifting and tilting are manually controlled for straightforward day-to-day operation.
For workshops comparing different machine configurations, explore Tuckwell Machinery's complete panel saw range for manual, NC and CNC options from Casolin, OAV, Panhans and Tuckwell.
The Astra SE400 is designed around a robust saw unit and a wide aluminium sliding carriage. Casolin's current manufacturer information lists manual blade movement, a 360 mm wide carriage and a maximum 400 mm main blade.
Maximum 400 mm main saw blade diameter with a 30 mm main shaft.
Maximum cutting height of 133 mm at 90° with a 400 mm blade.
Manual blade tilt and rise/fall for a straightforward workshop operating format.
360 mm wide anodised aluminium carriage designed for smooth movement and panel support.
Casolin describes the Astra SE carriage as a roller-based sliding system with a wide anodised top surface and a practical carriage lock for cutting and loading large panels. The manufacturer also notes that the sliding system is designed to minimise routine guide maintenance.
Specifications below are based on Casolin's current manufacturer information and the supplied Astra SE300/SE400 technical brochure. Confirm the exact Australian machine configuration and available options with Tuckwell Machinery before ordering.
| Specification | Casolin Astra SE400 |
|---|---|
| Main blade diameter | Up to 400 mm |
| Main shaft diameter | 30 mm |
| Maximum cutting height at 90° | 133 mm |
| Maximum cutting height at 45° | 94 mm |
| Blade tilt | 0–45° |
| Main blade speed | 4000 rpm standard; Casolin lists optional three-speed configuration |
| Carriage width | 360 mm |
| Manufacturer-listed carriage lengths | 1900 / 2350 / 2600 / 3200 / 3800 mm |
| Main motor | 4 kW (5.5 hp) manufacturer standard; higher-power options listed by Casolin |
| Scoring unit | Optional |
| Scoring blade diameter | 120 mm |
| Scoring shaft diameter | 20 mm |
| Scoring blade speed | 8000 rpm |
| Cast iron work table | 1000 × 615 mm |
| Brochure-listed net weight | 900 kg |
Configuration note: Tuckwell's Australian machine specification can vary from the manufacturer's standard specification and may include different carriage lengths, motor power or scoring options. Confirm the quoted machine configuration with Tuckwell Machinery.
The SE400 is aimed at professional workshops that want a substantial manual slider rather than the additional automation of Casolin's CNC-controlled models.
For sizing sheet materials and components in professional cabinet and kitchen manufacturing.
A practical manual machine for workshops cutting a mix of sheet goods and timber components.
Suitable where accurate sliding-table cutting and a substantial 400 mm blade capacity are required.
A robust option for businesses that value mechanical simplicity, rigidity and manual control.
Use the Casolin brochure for technical reference, or compare the Astra SE400 with other manual, NC and CNC machines in Tuckwell's broader panel saw range.
View the supplied Casolin Astra SE300/SE400 brochure for technical specifications, carriage details, blade protection, telescopic fence information and machine dimensions.
View Brochure →Need to compare the Astra SE400 with a manual, NC or CNC panel saw? View Tuckwell's full panel saw range to compare the available options.
View Panel Saw Range →Tuckwell Machinery supports professional woodworking businesses with machine selection, installation, operator training, servicing, parts and ongoing technical assistance from its Queensland operation.
Compare the SE400 against other sliding table saws around sheet size, capacity, workflow and automation requirements.
Talk to Tuckwell about delivery coordination, installation, commissioning and operator training.
Tuckwell supplies machinery to professional workshops throughout Australia from its Queensland base.
Ongoing technical support, servicing and spare-parts assistance for machinery supplied by Tuckwell.
Tell us your panel sizes, materials, production volume and preferred carriage length. Tuckwell can confirm the current Astra SE400 configuration and help determine whether this manual Casolin model suits your workshop.
Common questions about the Astra SE400's blade capacity, carriage, manual controls and how it compares with other machines in the Tuckwell range.
The Astra SE400 accepts a main saw blade up to 400 mm in diameter with a 30 mm main shaft.
The supplied Casolin brochure lists a maximum cutting height of 133 mm at 90° and 94 mm with the blade tilted to 45°.
Yes. Casolin describes the Astra SE400/300 as a sliding saw with manual blade lifting and tilting, with tilt adjustment from 0–45°.
Casolin's current manufacturer page lists carriage lengths of 1900, 2350, 2600, 3200 and 3800 mm. Available Australian configurations should be confirmed with Tuckwell Machinery.
Casolin lists the scoring group as an option. The manufacturer specification lists a 120 mm scoring blade running at 8000 rpm. Confirm the scoring configuration included with the machine quoted by Tuckwell.
You can compare manual, NC and CNC options on Tuckwell's panel saws page, including machines from Casolin, OAV, Panhans and Tuckwell.
Yes. Casolin states that the Astra SE400/300 is made in Italy.
Yes. Tuckwell Machinery provides machinery selection advice, installation support, operator training, servicing, technical support and spare-parts assistance for the equipment it supplies.
