2hp Dust Collector Machine, Single Bag 240v

3HP Dust Collector

2hp Dust Collector Machine, Single Bag 240v

$655.00

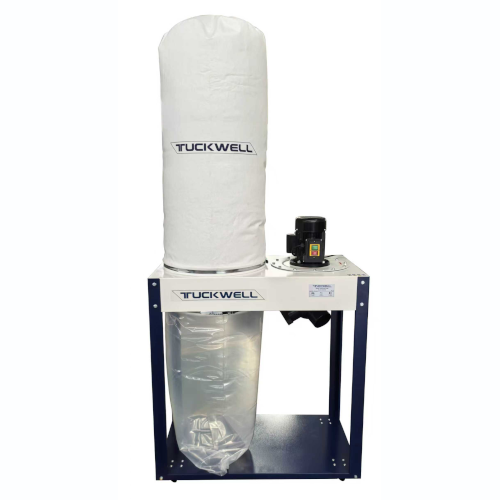

2HP Dust Collector – 240V

Tuckwell DX3

The Tuckwell DX3 2HP dust collector (240V) delivers powerful, high-volume extraction with up to 3300 m³/hr airflow. A large upper cloth filter bag and clear 500 mm lower plastic bag make filtration and disposal simple, keeping your workshop clean and efficient.



Key Features

  • High airflow: up to 3300 m³/hr for reliable chip and dust capture
  • Flexible inlets: 3 × 100 mm outlets, or convert to a single 150 mm inlet for maximum airflow
  • Easy maintenance: upper cloth filter bag + clear 500 mm lower collection bag
  • Heavy-duty build: housing can be rotated to set the fan outlet at the top or bottom
  • 240V single-phase: ideal for small to medium workshops needing a compact, dependable 2HP dust collector

Why Choose the DX3 2HP Dust Collector (240V)?

This model is a sweet spot for performance and footprint. Run multiple 100 mm lines or open up to a single 150 mm inlet when you need maximum throughput. The clear lower bag makes fill-level checks fast, and the rotatable outlet lets you tailor the layout to your space.

Looking for More Power?

Step up when your workflow demands it:

At a Glance

  • Motor: 2HP (240V)
  • Airflow: up to 3300 m³/hr
  • Inlets: 3 × 100 mm (convertible to 1 × 150 mm)
  • Bags: upper cloth filter; 500 mm clear lower collection bag
  • Orientation: fan outlet rotatable (top or bottom)
SKU DX-TMDX3 Categories , , Tags , , ,

Description

Tuckwell 2hp Single Bag, 240v Dust Collector – High-Performance Industrial Dust Extraction

The Tuckwell 2HP Dust Collector is engineered for powerful and efficient dust extraction in woodworking and industrial workshops. Equipped with a robust 2HP, 240V motor, this industrial dust collector delivers an impressive 3300 m3/hr airflow to keep your workspace cleaner, safer, and more productive.

Why Choose This 2HP Dust Collector?

  • High-Performance 2HP Motor – Generates 3300 m3/hr airflow to handle heavy-duty dust loads.
  • Versatile Connection Options – Comes standard with 3 × 100 mm outlets, or remove the manifold for a single 150 mm inlet to maximise airflow to one machine.
  • Efficient Single-Bag System – Large upper cloth filter bag for fine dust filtration and a clear 500 mm diameter lower plastic bag for quick and easy disposal.
  • Heavy-Duty Construction – Built to last with durable materials, making it a reliable 2HP dust collector for demanding workshop environments.
  • Able to be rotated with fan outlet to TOP or BOTTOM – Precision-engineered for quality and long service life.

Technical Specifications

Model TMDX3
Impeller Dia. 14″
Motor 2 HP (240V)
Capacity 3300 m3/hr
Static Pressure (inch of water) 19
Sound Rating 75–90 dB
Intake Opening Ø150 × 1, Ø100 × 3
Packing Size (cm / cu. ft.) 105 × 61 × 52 cm
Net Weight (N.W.) 45 kg
Gross Weight (G.W.) 48 kg

Ideal Applications

  • Cabinetmaking and joinery workshops
  • Industrial woodworking machinery setups
  • Home workshops

Order Your Tuckwell Single Bag 2hp Dust Collector Today

Upgrade your dust extraction system with the power and reliability of the Tuckwell DX3, 240v Single Bag Dust Collector. Contact Tuckwell Machinery now for pricing, availability, and expert advice on the right extraction setup for your workshop.

Additional information

Weight 90 kg
