355 mm Main Blade
A 355 mm main saw blade provides stable cutting performance with a maximum cutting height of 105 mm at 90°.

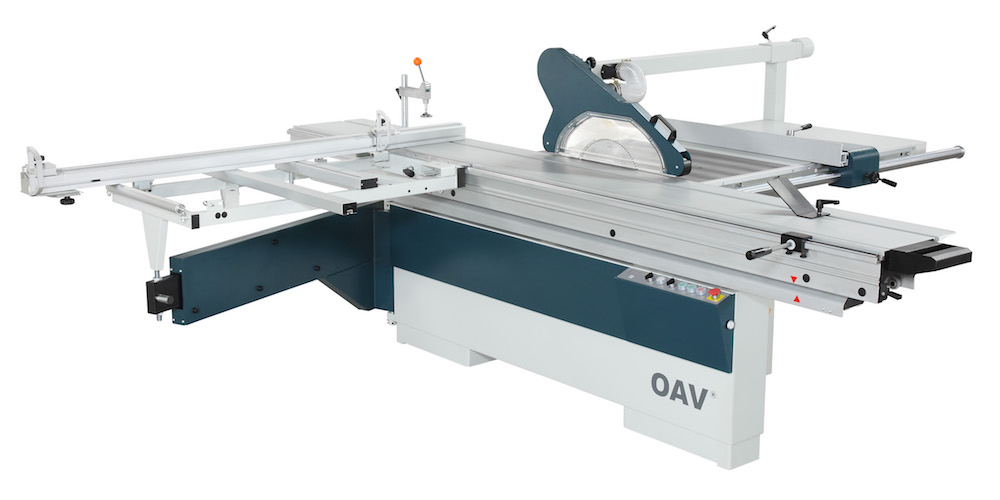

The OAV A405A is a heavy-duty sliding table panel saw designed for professional cabinet making, joinery and furniture production, with a precision aluminium sliding table, electric blade height and angle adjustment, 1300 mm cutting width and industrial construction for demanding workshop use.
The OAV A405A panel saw is built around a rigid industrial frame and a precision dual-rail aluminium sliding table for smooth, accurate sheet handling. Electric main-blade height and angle adjustment make setup easier, while the manual cutting-width system keeps operation straightforward and dependable for experienced workshop teams.
For businesses comparing OAV with other panel saw options, Tuckwell Machinery's main panel saw range covers manual, NC and CNC machines for different production requirements.
The A405A is OAV's heavy-duty production-focused sliding table saw, combining a 355 mm main blade, three blade speeds, electric blade positioning and a large anodised aluminium sliding table.
A 355 mm main saw blade provides stable cutting performance with a maximum cutting height of 105 mm at 90°.
Main blade height and angle are electrically adjusted for easier setup and repeatable day-to-day operation.
The anodised dual-rail aluminium table is designed for smooth movement, wear resistance and accurate panel feeding.
A substantial 1300 mm cutting width supports professional cabinet, furniture and joinery production.
The A405A's sliding system is designed around a heavily built aluminium table and precision guides. The anodised table surface helps resist wear while supporting large sheet materials through the cut.
The A405A is designed for workshops processing sheet materials for cabinetry, furniture, joinery and commercial production where mechanical reliability, accurate cutting and straightforward operation are priorities.
A 7.5 hp three-phase main motor provides strong cutting performance across common panel materials.
Select 3000, 4000 or 5000 rpm to suit different material and cutting requirements.
A 120 mm scoring blade with 1 hp motor helps produce cleaner cuts on laminated and finished board products.
Industrial-grade construction is designed for long operating hours in professional production workshops.
The A405A is available with 3200 mm and 3800 mm sliding tables while retaining the same core cutting, blade and motor specification.
| Specification | OAV A405A |
|---|---|
| Sliding table sizes | 3200 × 395 mm / 3800 × 395 mm |
| Total table size | 1500 × 1726 mm |
| Main saw blade | 355 mm |
| Main saw blade arbor | 30 mm |
| Maximum cutting height at 90° | 105 mm |
| Maximum cutting height at 45° | 70 mm |
| Main motor | 7.5 HP (5.6 kW), 3 phase |
| Main blade speeds | 3000 / 4000 / 5000 rpm |
| Scoring blade | 120 mm |
| Scoring blade arbor | 20 mm |
| Scoring motor | 1 HP (0.75 kW) |
| Scoring blade speed | 8000 rpm |
| Cutting width | 1300 mm |
| Cutting width adjustment | Manual |
| Main blade angle adjustment | Electric |
| Main blade height adjustment | Electric |
| Scoring adjustment | Manual |
| Blade guard | Half guard standard; full guard optional |
| Dust extraction ports | 120 mm / 64 mm at overhead guard |
Configuration note: Machine options and supplied configuration can vary. Confirm the current A405A specification, guarding, table length and available accessories with Tuckwell Machinery before ordering.
The A405A keeps the cutting workflow straightforward while adding powered adjustment where it delivers the greatest day-to-day benefit.

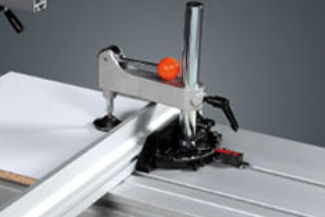

Optional secure workpiece clamping supports stable cutting and can be paired with an adjustable tilting fence.
A machined aluminium fence supports quick positioning and accurate work with larger sheet materials.
The scoring unit is designed for straightforward manual adjustment and accurate clean-cut setup.
An optional full guard increases operator protection and can improve extraction around the cutting area.
Tuckwell offers several OAV panel saw configurations for workshops with different table-size, control and automation requirements.
A sturdy manual model with 3.2 m and 3.8 m sliding tables, manual rip fence and manual blade rise, fall and tilt.
View OAV A405M →The industrial A405A combines a manual cutting-width system with electric blade height and angle adjustment.
Current Model →An NC-controlled model with programmable rip-fence positioning, electronic blade movement and overhead control.
View OAV A405E NC →A compact 1600 mm sliding-table option for workshops needing professional panel-cutting capability in a smaller footprint.
View OAV P30 →The A405A is well suited to professional workshops processing sheet goods where consistent accuracy, clean cutting and dependable long-hour operation are important.
For cutting MDF, particleboard, melamine and other sheet materials used in kitchens, wardrobes and custom cabinetry.
Supports accurate panel sizing and clean edges for repeat furniture-production workflows.
A strong fit for fit-out and architectural joinery workshops processing varied sheet materials.
Industrial construction suits workshops that need reliable cutting performance across long production days.
Tuckwell Machinery supplies OAV panel saws to woodworking businesses throughout Australia, with machinery advice, installation support, operator training, servicing, spare parts and ongoing technical assistance.
Compare OAV models around table length, cutting capacity, blade control and the level of automation your workshop needs.
Talk to Tuckwell about machinery delivery, commissioning and practical operator training.
Tuckwell supplies machinery to professional workshops throughout Australia from its Queensland operation.
Access technician-backed support, servicing and spare-parts assistance for OAV machinery supplied by Tuckwell.
Tell us your sheet sizes, production volume, preferred sliding-table length and required level of automation. Tuckwell can help compare the OAV range and identify the most suitable machine for your workshop.
Common questions about the OAV A405A, the wider OAV panel saw range and choosing the right configuration for a professional workshop.
The A405A is an industrial sliding table panel saw designed for professional panel processing in cabinet making, furniture manufacturing, joinery and other production woodworking environments.
The A405A is available with 3200 mm and 3800 mm sliding tables, both 395 mm wide.
The A405A has a maximum cutting width of 1300 mm with manual cutting-width adjustment.
Yes. The A405A uses electric adjustment for both main-blade height and main-blade angle. The scoring unit is manually adjusted.
Yes. It uses a 120 mm scoring blade powered by a 1 hp motor at 8000 rpm to support clean cutting of laminated and finished panels.
The A405M is the more manual configuration, the A405A adds electric main-blade height and angle adjustment, and the A405E NC adds programmable cutting-width control and a higher level of electronic operation.
Visit Tuckwell's panel saw range to compare OAV with other manual, NC and CNC panel saw options.
Yes. Tuckwell Machinery provides machinery selection advice, installation support, operator training, servicing, technical assistance and spare-parts support for OAV machinery it supplies.
